Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
Detection range: 10 - 100 mm
Background suppression: starts from 125 mm
Reference target: standard black, 100 mm x 100 mm
Light source: LED
Light type: modulated visible red light , 640 nm
Black/White difference (6 %/90 %): ≤ 15 %
Operating voltage: 10 - 30 V DC , class 2
Ripple: max. 10 %
No-load supply current: < 30 mA
Time delay before availability: ≤ 100 ms

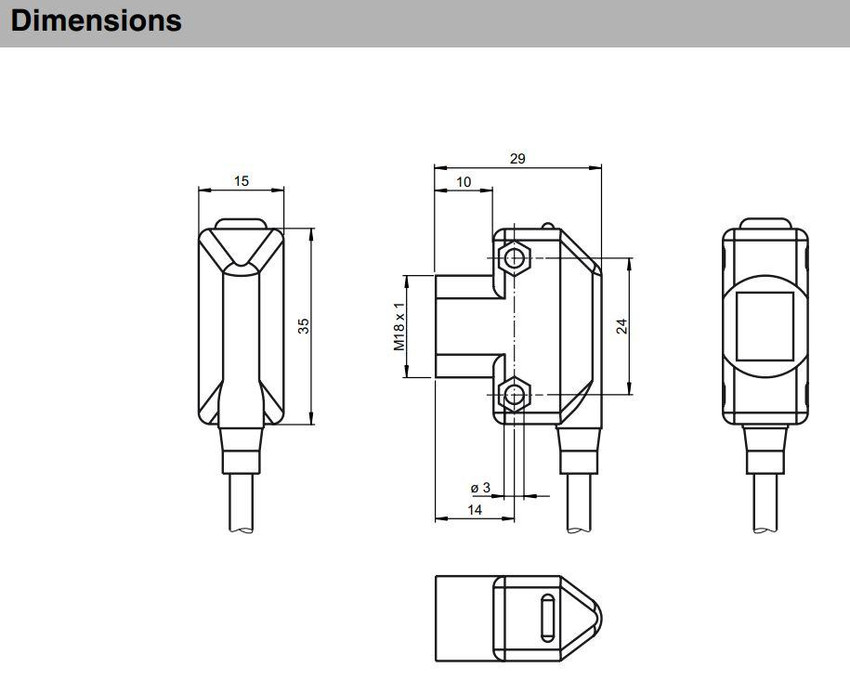

Housing width: 15 mm
Housing height: 34.5 mm
Degree of protection: IP67
Connection: 2 m PVC cable
Switching type: light/dark on
Signal output: 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
