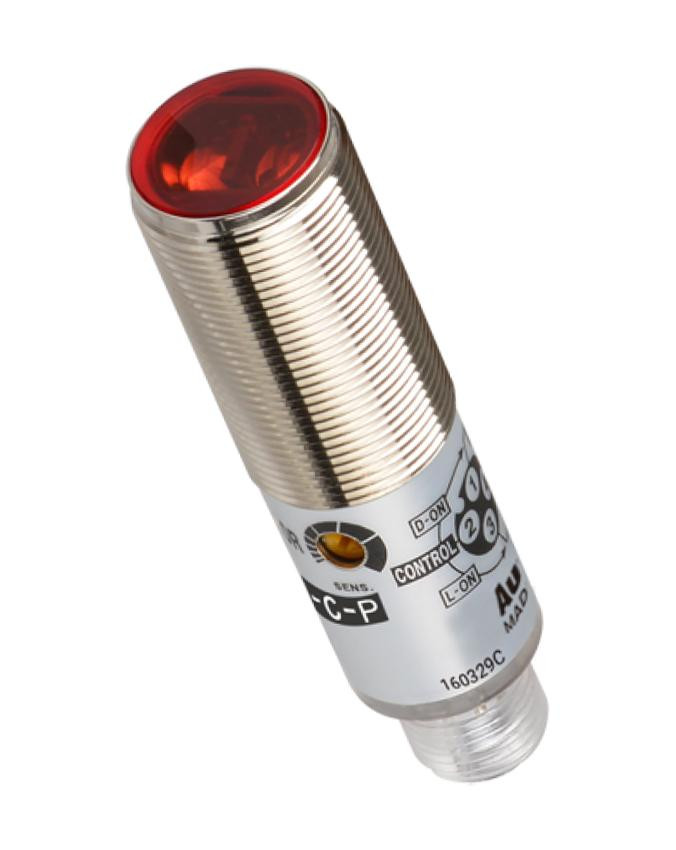

BRQM100-DDTA
Alt: This Item Replaced BR100-DDT
$71.00
Photoelectric Diffuse Reflective Sensor, Metal Body, 10-30VDC, 100mm Sensing Range, NPN, Light & Dark On
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Autonics is a Korean-based company that is a leading provider of automation solutions worldwide. They have had offices in the U.S. since 2001 and have a warehouse and sales office right here in Illinois.
Autonics develops and manufacturers most of their products which means they are high quality, readily available and competitive. Their products range from sensors and controllers to safety and industrial networking devices.
Specifications
Alternate Part Number
This Item Replaced BR100-DDT
Connection
See Spec
Light Source
LED
NPN or PNP
NPN (Sink)
Light On/Dark On
Light ON/Dark ON
Sensing Method
Diffuse Reflective
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67
Size
16mm
Warranty
3 Years
Weight
0.5
Features Include:
- Sensing Distance: 100mm
- Sensing Target: Opaque, Translucent material
- Response Time: Max. 1ms
- Power Supply: 10-30VDC, ±10%(ripple P-P: max. 10%)
- Current Consumption: Max. 30mA
- Light source: Infrared LED (850nm)
- Hysteresis (distance): Max. 20% at rated sensing distance
- Material: Case: brass, Ni-plate, Lens/Lens Cover: polymethyl methacrylate acrylic
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Autonics
BRQP100-DDTA
Photoelectric Diffuse Reflective Sensor, Plastic Body, 10-30VDC, 100mm Sensing Range, NPN, Light & Dark On
$72.00
Autonics
BRQM400-DDTA
Photoelectric Sensor, Diffuse Reflective, Metal Body, 10-30VDC, 400mm Sensing Distance, Light & Dark On, NPN Output
$77.00

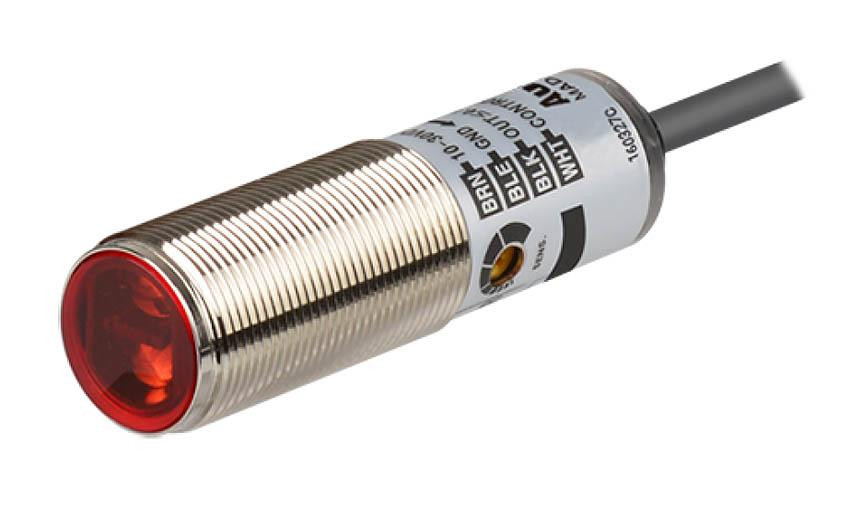

Autonics
