PA18CLD01TO
Carlo Gavazzi

PA18CLD01TO

Alt: Minimum Order 5 Pieces, Price per Piece

$105.45

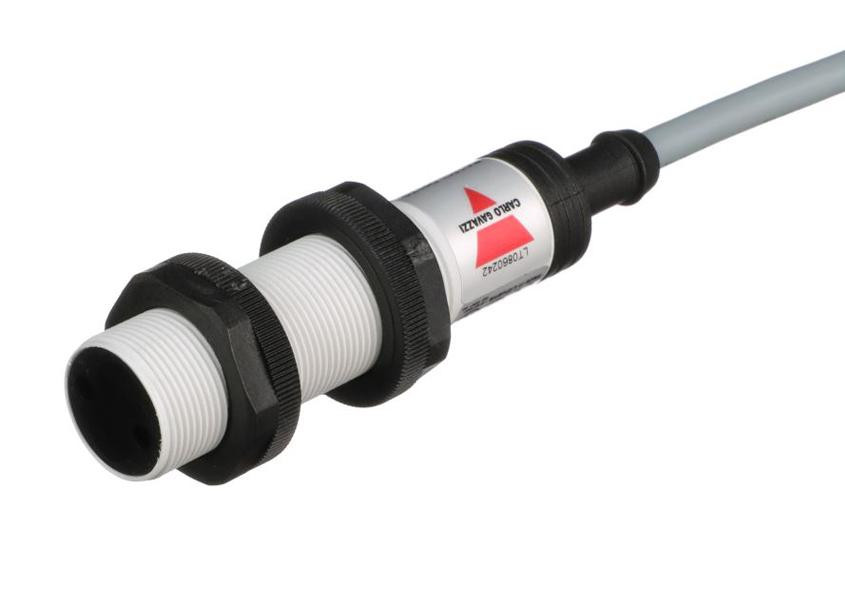

Photoelectric Diffuse Reflective Sensor, M18, 20-250VAC Power Supply, 100mm Range, 2-Wire SCR NO, 2m PVC Cable, Modulated, Infrared Light 880nm, PBTP Housing, IP67

Weight:
0.50 LBS
Minimum Purchase:
5 units
Adding to cart… The item has been added
Conforms to ECOLAB, IP67 and IP69K!
Description

Carlo Gavazzi's PA18 and PH18 series of sensors are cost effective, compact, have a robust ABS housing and offer an easy to clean solution for a wide range of appilcations!

Both series conform to the standards of ECOLAB, IP67 and IP69K. They also offer NO and NC all-in-one, allowing you to choose which you need.

Both of these series have longer sensing distances, high speed detection and improved LED diagnostics. Being resistant to high temperatures, high-pressure cleaning, strong cleaning agents and disinfectants, these sensors are especially well suited for reliable detection in harsh environments.

The PA/PH18 series is available in a variety of versions:  The PA18 comes in an axial or a radial version and the PH18 in a square version. Both PA18 and PH18 are available as diffuse reflective with narrow or wide viewing angle, diffuse reflective with background suppresion, retro-reflective, polarized retro-reflective and through-beam sensors.

Their PH18 series combines a rectangular and M18 housing for universal mounting! This sensor can be mounted to a bracket or as a traditional M18 sensor and is IP69K rated for high pressure/high temperature washdowns.

Installation of the PA/PH18 series is easy using a new mounting bracket, APA/APH18-MB1. This simple accessory results in a smooth and neat finish and a space saving, easy-to-clean application.

Features Include:

  • Rated Operational Voltage: 20 to 250 VAC, 45 to 65 Hz
  • Rated Operating Distance: 100 mm fixed
  • Minimum Operational Current: 10 mA
  • Off-State Current: Max < 5 mA, typ. 2.6 mA
  • Operating Frequency: 20 Hz, light/dark ratio 1:2
  • Range: 400 mm adjustable, 100, 200 or 400 mm fixed
  • Light Source: GaAlAs LED, 880 nm
  • Light Type: Infrared, modulated synchronized
  • Indication Function: Dark (NC) or light (NO) switching
  • Output ON: LED, yellow
  • Sensing Angle: ± 25° at 1/2 range
  • Protection: Transients
  • Output: 500 mA SCR
  • Make or break switching function, LED indication
  • High immunity to ambient light
  • Cable connection
