PA18CLD04TOSA
Alt: Manufacturer Minimum Order 5 Pieces

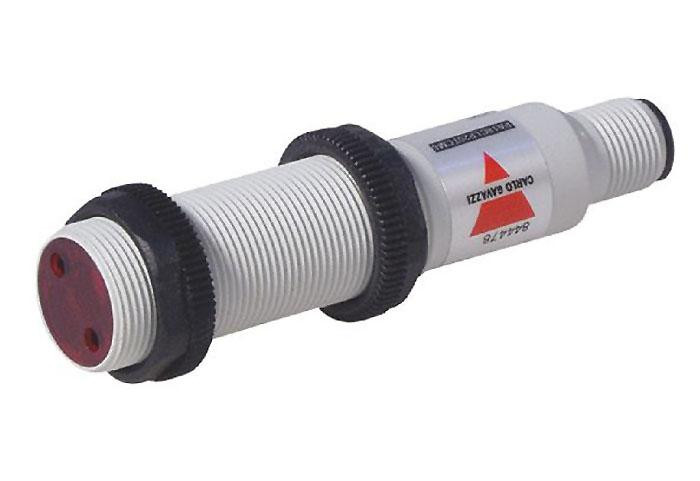

Photoelectric Diffuse Reflective Sensor, Ø18mm, 20-250VAC, 400mm Adj Range, SCR NO, 2m Cable, Manufacturer Minimum Order 5 Pieces, Price per Piece
- Minimum Purchase:
- 5 units
Carlo Gavazzi's PA18 and PH18 series of sensors are cost effective, compact, have a robust ABS housing and offer an easy to clean solution for a wide range of appilcations!
Both series conform to the standards of ECOLAB, IP67 and IP69K. They also offer NO and NC all-in-one, allowing you to choose which you need.
Both of these series have longer sensing distances, high speed detection and improved LED diagnostics. Being resistant to high temperatures, high-pressure cleaning, strong cleaning agents and disinfectants, these sensors are especially well suited for reliable detection in harsh environments.
The PA/PH18 series is available in a variety of versions: The PA18 comes in an axial or a radial version and the PH18 in a square version. Both PA18 and PH18 are available as diffuse reflective with narrow or wide viewing angle, diffuse reflective with background suppresion, retro-reflective, polarized retro-reflective and through-beam sensors.
Their PH18 series combines a rectangular and M18 housing for universal mounting! This sensor can be mounted to a bracket or as a traditional M18 sensor and is IP69K rated for high pressure/high temperature washdowns.
Installation of the PA/PH18 series is easy using a new mounting bracket, APA/APH18-MB1. This simple accessory results in a smooth and neat finish and a space saving, easy-to-clean application.
Features Include:
- Rated Operational Voltage: 20 to 250 VAC, 45 to 65 Hz
- Minimum Operational Current: 10 mA
- Off-State Current: Max < 5 mA, typ. 2.6 mA
- Operating Frequency: 20 Hz, light/dark ratio 1:2
- Range: 400 mm adjustable, 100, 200 or 400 mm fixed
- Light Source: GaAlAs LED, 880 nm
- Light Type: Infrared, modulated synchronized
- Sensing Angle: ± 25° at 1/2 range
- Protection: Transients
- Output: 500 mA SCR
- Make or break switching function, LED indication
- High immunity to ambient light
- Cable and plug versions

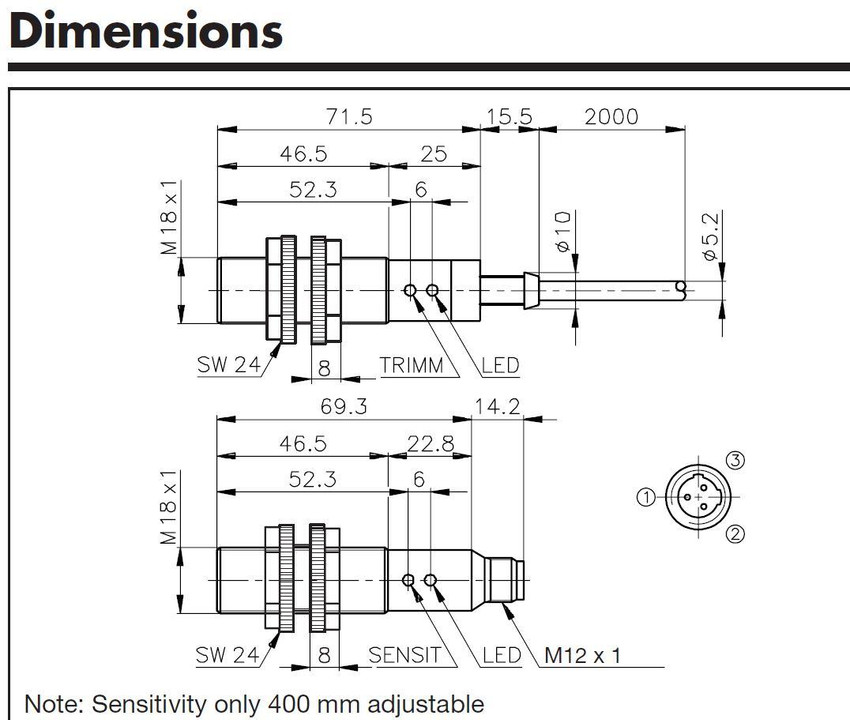

Technical Information:
