50129398
Leuze

50129398

Alt: HT3CL2/4P-200-M8, Non-Cancellable / No Returns

$331.00

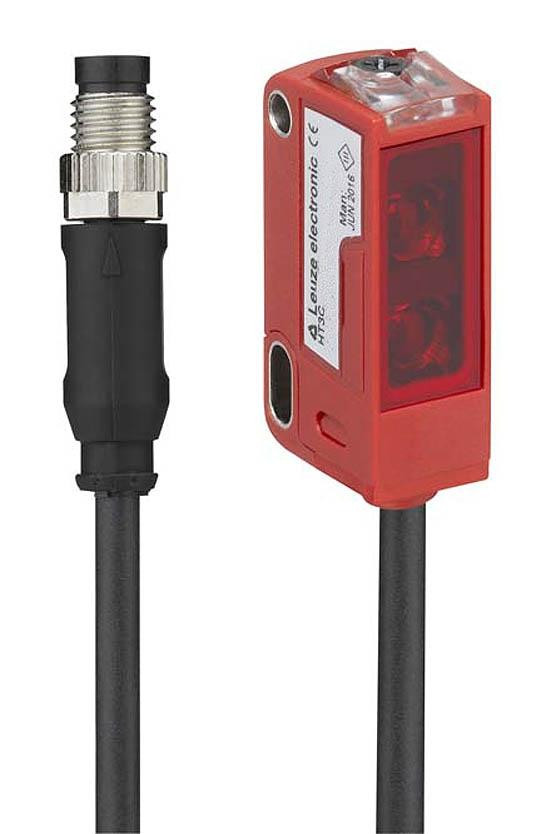

Diffuse Sensor with Background Suppression, 0.015-0.55m, Laser, Red, PNP, Cable, M8, 4-Pin, NCNR

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric, Diffuse, Background suppression, 0.015..0.55m, Laser, Red, PNP, Cable, M8, 4pin

Features Include:

  • Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
  • Residual Ripple: 0 - 15 %, From UB
  • Switching Frequency: 1,000 Hz
  • Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
  • Housing Material: Plastic PC-ABS
  • Lens Cover Material: Plastic/PMMA
  • Type of Fastening: Via optional mounting device, Through-hole mounting

Connection:

  • Type of Connection: Cable with Connector
  • Thread Size: M8
  • Material: Metal
  • Number of Pins: 4-pin

Optical Data:

  • Black-White Error: 10% up to 250 mm
  • Operating Range, White 90%: 0.015 - 0.55 m
  • Operating Range, Gray 18%: 0.015 - 0.44 m
  • Operating Range, Black 6%: 0.015 - 0.25 m
  • Operating range limit: 0.015 - 0.55 m
  • Adjustment range: 20 - 550 mm
  • Light Source: LED, Red
  • Light-Spot Size (at sensor distance): 1 mm [550 mm]
