50129396
Alt: HT3CL2/4P, Non-Cancellable / No Returns
$320.00

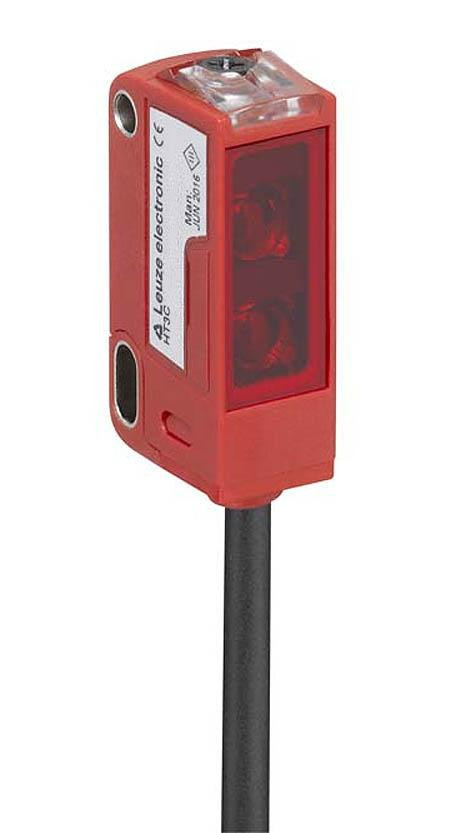

Diffuse Sensor with Background Suppression, 0.015-0.55m, Laser, Red, Cable, 2,000mm, 4-Wire, NCNR
- Weight:
- 1.83 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Diffuse, Background suppression, 0.015...0.55m, Laser, Red, Cable, 2,000 mm, 4 wire
Specifications
Alternate Part Number
HT3CL2/4P, Non-Cancellable / No Returns
Connection
w/Cable
Light Source
Laser
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Diffuse w/Background
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
HT3C Series
Size
Rectangular
Warranty
2 Years
Weight
1.8302
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Switching Frequency: 3,000 Hz
- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic PC-ABS
- Lens Cover Material: Plastic/PMMA
- Type of Fastening: Via optional mounting device, Through-hole mounting
Connection:
- Type of Connection: Cable
- Number of Conductors: 4-Wire
Optical Data:
- Black-White Error: <10% up to 250 mm
- Operating Range, White 90%: 0.015 - 0.55 m
- Operating Range, Gray 18%: 0.015 - 0.44 m
- Operating Range, Black 6%: 0.015 - 0.25 m
- Operating range limit: 0.015 - 0.55 m
- Adjustment range: 20 - 550 mm
- Light Source: LED, Red
- Light-Spot Size (at sensor distance): 1 mm [550 mm]
