50129394
Leuze

50129394

Alt: HT3CL1/4P-200-M8

$331.00

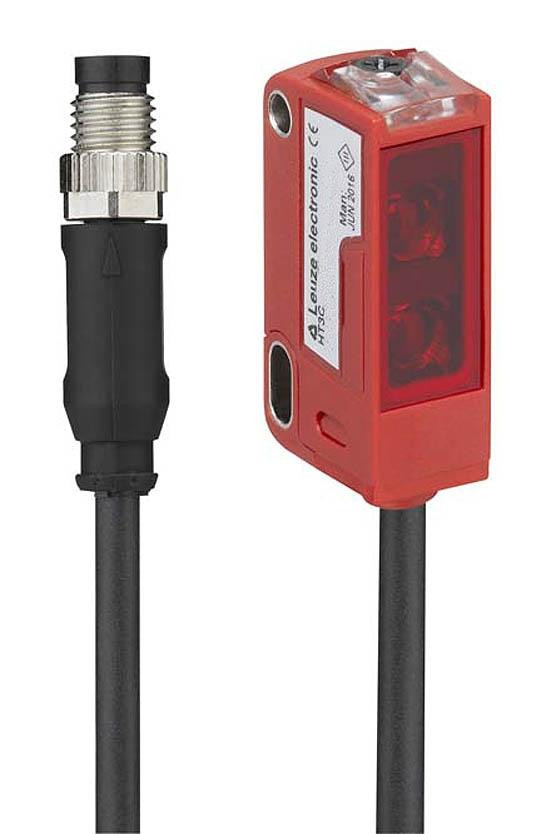

Diffuse Sensor with Background Suppression, 0.015-0.4m, Laser, Red, PNP, Cable, M8, Metal, 4-Pin

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric, Diffuse, Background suppression, 0.015..0.4m, Laser, Red, PNP, Cable, M8, Mtl, 4pin

Features Include:

  • Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
  • Switching Frequency: 3,000 Hz

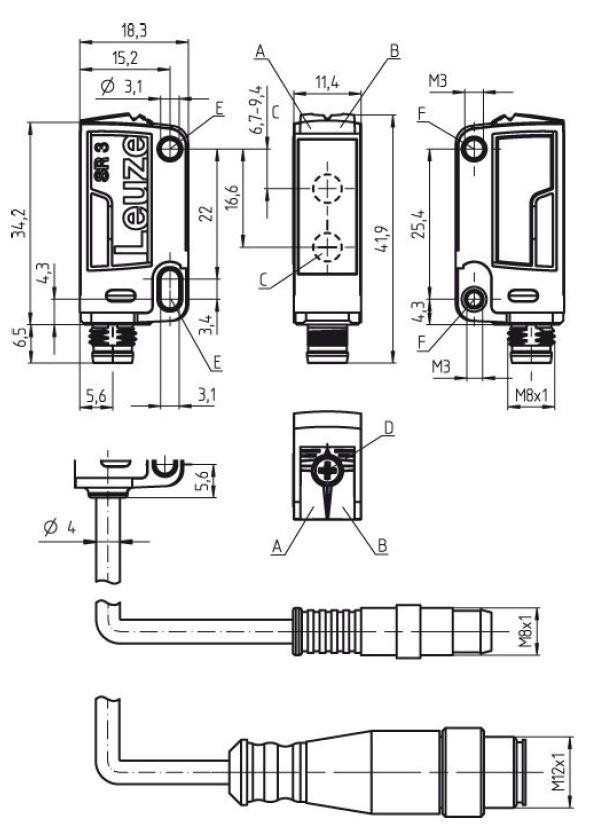

  • Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
  • Housing Material: Plastic PC-ABS
  • Lens Cover Material: Plastic/PMMA
  • Type of Fastening: Via optional mounting device, Through-hole mounting

Connection:

  • Type of Connection: Cable with connector
  • Thread Size: M8
  • Material: Metal
  • Number of Pins: 4-Pin

Optical Data:

  • Black-White Error: <10% up to 170 mm
  • Operating Range, White 90%: 0.015 - 0.4 m
  • Operating Range, Gray 18%: 0.015 - 0.25 m
  • Operating Range, Black 6%: 0.015 - 0.17 m
  • Operating range limit: 0.015 - 0.4 m
  • Adjustment range: 20 - 400 mm
  • Light Source: LED, Red
  • Light-Spot Size (at sensor distance): 1 mm [400 mm]
