50129384
Alt: HT3C.XL/4P, Non-Cancellable / No Returns
$206.00

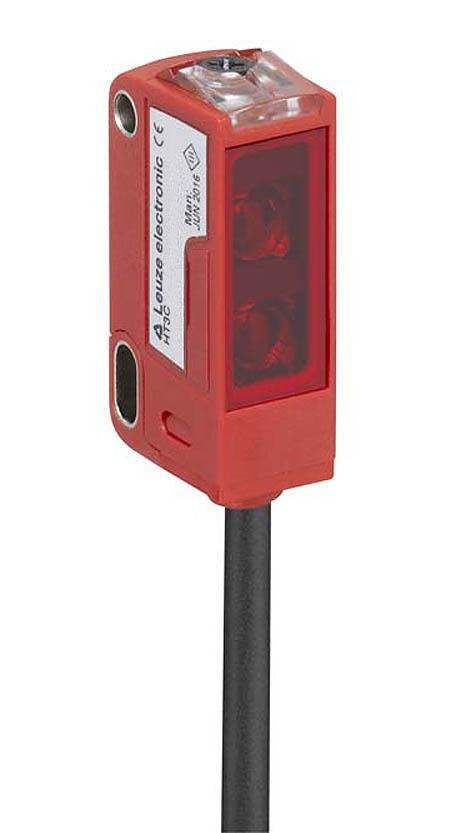

Diffuse Sensor with Background Suppression, 0.005-0.1m, LED, Red, PNP, Cable, 4-Wire, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Diffuse, Background suppression, 0.005...0.1 m, LED, Red, PNP, Cable, 4 -wire
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 1,000 Hz
- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic PC-ABS
- Lens Cover Material: Plastic/PMMA
Connection:
- Type of Connection: Cable
- Number of Conductors: 4-Wire
Optical Data:
- Black-White Error: <10% up to 60 mm
- Operating Range, White 90%: 0.005 - 0.05 m
- Operating Range, Gray 18%: 0.005 - 0.045 m
- Operating Range, Black 6%: 0.005 - 0.04 m
- Operating Range Limit, White 90%: 0.005 - 0.1 m
- Operating Range Limit, Gray 18%: 0.005 - 0.09 m
- Operating Range Limit, Black 6%: 0.005 - 0.08 m
- Adjustment range: 20 - 100 mm
- Light Source: LED, Red
