50127064
Alt: HT46CI/PX-M12, Non-Cancellable / No Returns
$211.00
Diffuse Sensor with Background Suppression, 0.005-3m, LED, Infrared, M12, Plastic, 4-Pin, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Diffuse, Background suppression, 0.005...3 m, LED, Infrared, M12, Plastic, 4 -pin
Specifications
Alternate Part Number
HT46CI/PX-M12, Non-Cancellable / No Returns
Connection
See Spec
Light Source
Infrared
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Diffuse w/Background
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
HT46 Series
Size
12mm
Warranty
2 Years
Weight
0.25
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 250 Hz

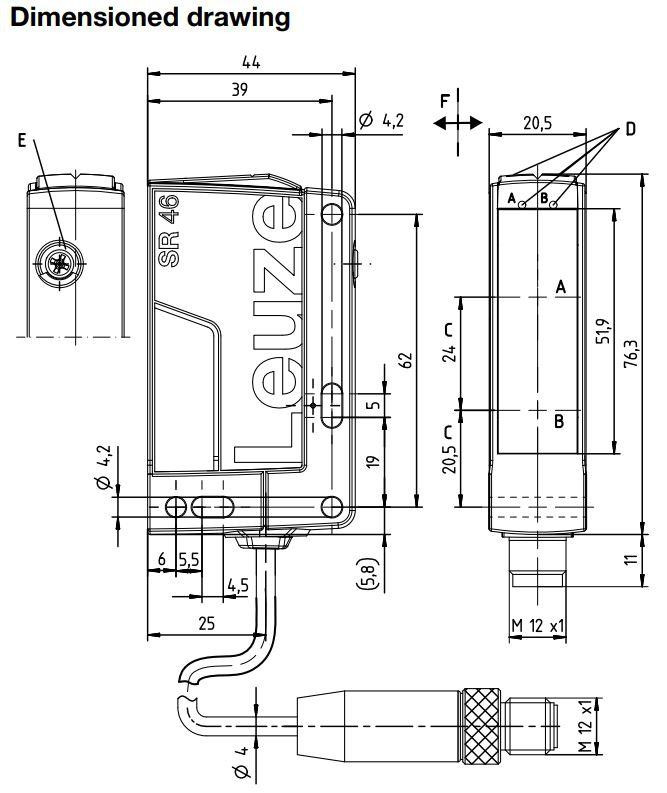

- Dimensions (W x H x L): 20.5 mm x 76.3 mm x 44 mm
- Housing Material: Plastic, PC-PBT
- Lens Cover Material: Plastic/PMMA
Connection:
- Type of Connection: Connector
- Thread Size: M12
- Material: Plastic
- Number of Pins: 4-pin
Optical Data:
- Black-White Error: <10% up to 1200 mm
- Operating Range, White 90%: 0.005 - 3 m
- Operating Range, Gray 18%: 0.02 - 2 m
- Operating Range, Black 6%: 0.05 - 1.5 m
- Operating Range Limit: 0.005 - 3 m
- Adjustment range: 5 - 3,000 mm
- Light Source: LED, Infrared

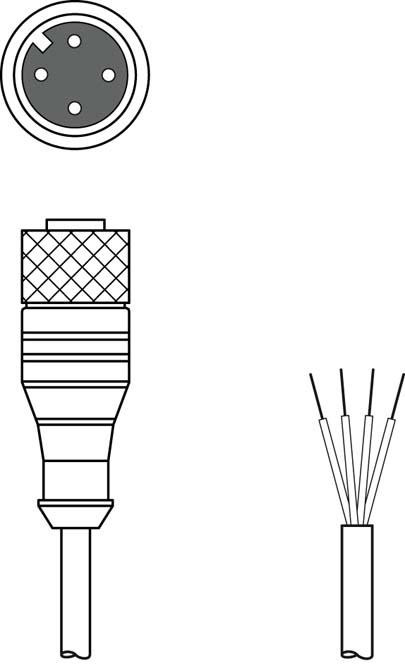

Accessories
