50137049
Alt: HT3C.V/4X-M8, Non-Cancellable / No Returns
$213.00
Diffuse Sensor with Background Suppression, 0.015-0.15m, LED, Red, PNP, Connector, M8, Metal, 4-Pin, NCNR
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Photoelectric, Diffuse, Background suppression, 0.015..0.15m, LED, Red, PNP, Cntr, M8, Metal, 4pin
Specifications
Alternate Part Number
HT3C.V/4X-M8, Non-Cancellable / No Returns
Connection
4-Pin, Straight
Light Source
LED
NPN or PNP
PNP (Source)
Light On/Dark On
See Spec or N/A
Sensing Method
Diffuse w/Background
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
HT3C Series
Size
Rectangular
Warranty
2 Years
Weight
0.1
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 1000 Hz

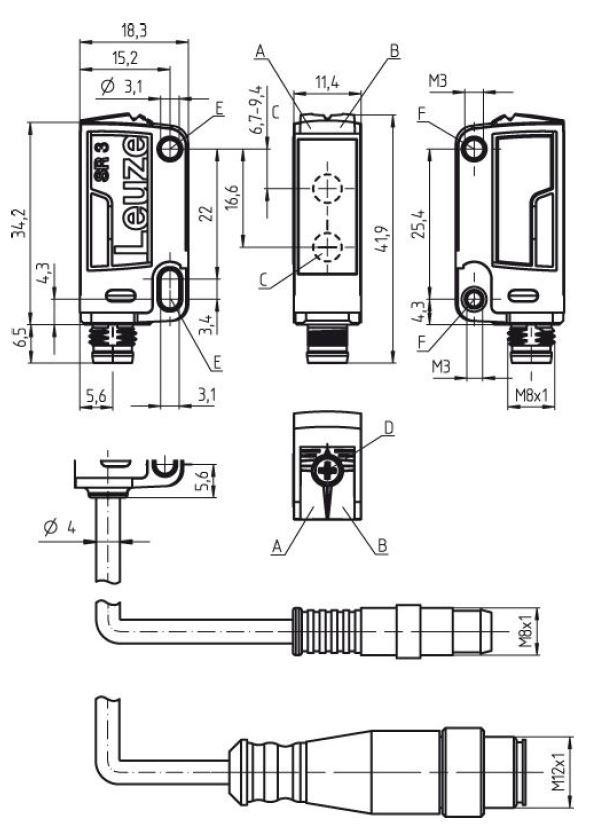

- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic PC-ABS
- Lens Cover Material: Plastic/PMMA
- Type of Fastening: Via optional mounting device, Through-hole mounting
Connection:
- Type of Connection: Connector
- Thread Size: M8
- Material: Metal
- Number of Pins: 4-Pins
Optical Data:
- Black-White Error: <10% up to 100 mm
- Operating Range, White 90%: 0.015 - 0.15 m
- Operating Range, Gray 18%: 0.015 - 0.13 m
- Operating Range, Black 6%: 0.015 - 0.11 m
- Operating range limit: 0.015 - 0.15 m
- Adjustment range: 20 - 150 mm
- Light Source: LED, Red
