50135360
Alt: HT3CI/4P, Non-Cancellable / No Returns
$190.00

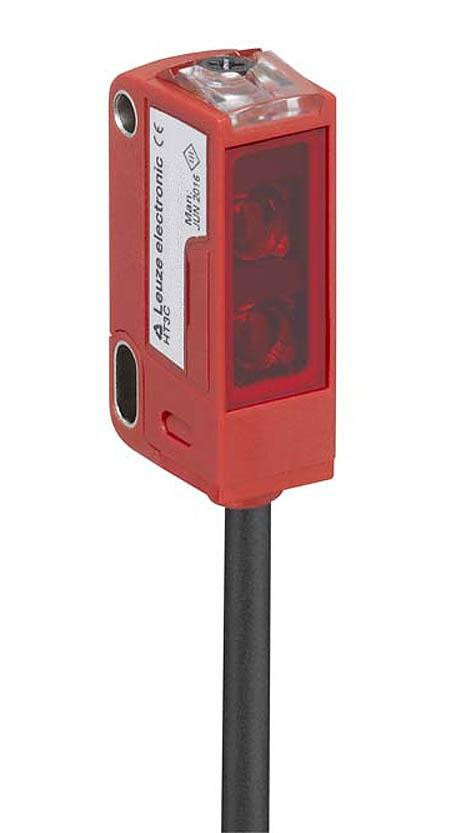

Diffuse Sensor with Background Suppression, 0.005-0.6m, LED, Infrared, PNP, 2,000mm, 4-Wire, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Diffuse, Background suppression, 0.005..0.6m, LED, Infrared, PNP, 2,000mm, 4wire
Specifications
Alternate Part Number
HT3CI/4P, Non-Cancellable / No Returns
Connection
M8, Straight
Light Source
Infrared
NPN or PNP
PNP (Source)
Light On/Dark On
See Spec or N/A
Sensing Method
Diffuse w/Background
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
HT3C Series
Size
Rectangular
Warranty
2 Years
Weight
0.25
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 1,000 Hz
- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic PC-ABS
- Lens Cover Material: Plastic/PMMA
- Type of Fastening: Via optional mounting device, Through-hole mounting
Connection:
- Type of Connection: Cable
- Number of Conductors: 4-wire
Optical Data:
- Black-White Error: <10% up to 250 mm
- Operating Range, White 90%: 0.005 - 0.6 m
- Operating Range, Gray 18%: 0.01 - 0.5 m
- Operating Range, Black 6%: 0.015 - 0.4 m
- Operating range limit: 0.005 - 0.6 m
- Adjustment range: 15 - 600 mm
- Light Source: LED, Infrared
