50134608
Alt: HT46CL2/4P-M12, Non-Cancellable / No Returns
$300.00

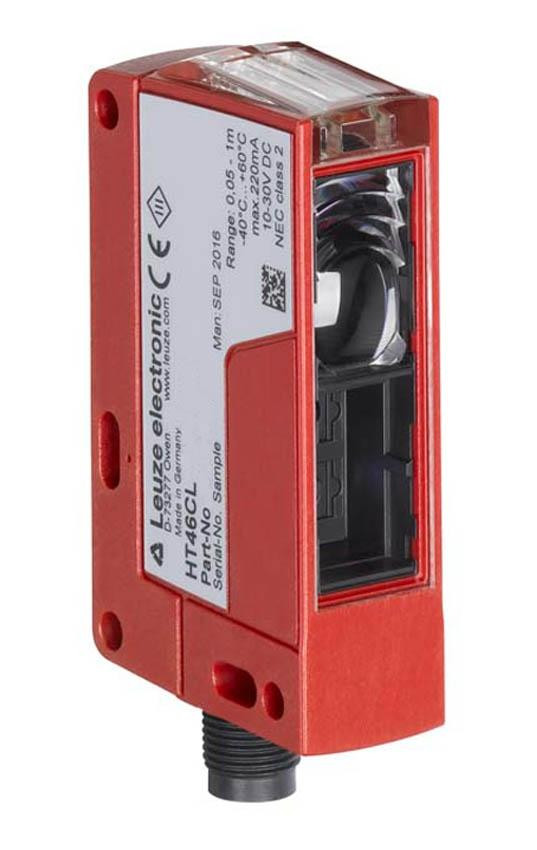

Diffuse Sensor with Background Suppression, 0.05-1.2m, Laser, Red, PNP, M12, Plastic, 4-Pin, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Diffuse, Background suppression, 0.05..1.2m, Laser, Red, PNP, M12, Plastic, 4pin
Specifications
Alternate Part Number
HT46CL2/4P-M12, Non-Cancellable / No Returns
Connection
4-Pin, Straight
Light Source
Laser
NPN or PNP
PNP (Source)
Light On/Dark On
See Spec or N/A
Sensing Method
Diffuse w/Background
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
HT46 Series
Size
12mm
Warranty
2 Years
Weight
0.25
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 250 Hz
- Dimensions (W x H x L): 20.5 mm x 76.3 mm x 44 mm
- Housing Material: Plastic, PC-PBT
- Lens Cover Material: Plastic/PMMA
Connection:
- Type of Connection: Connector
- Thread Size: M12
- Material: Plastic
- Number of Pins: 4-pin
Optical Data:
- Black-White Error: <10% up to 1000 mm
- Operating Range, White 90%: 0.05 - 1 m
- Operating Range, Gray 18%: 0.07 - 0.75 m
- Operating Range, Black 6%: 0.09 - 0.6 m
- Operating Range Limit: 0.005 - 1.2 m
- Adjustment range: 50 - 1,200 mm
- Light Source: Laser, Red
