50133592
Leuze

50133592

Alt: HT3C/2N-M8

$184.00

Diffuse Sensor with Background Suppression, 0.005-0.45m, LED, Red, NPN, Connector, M8, Metal, 4-Pin

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric, Diffuse, Background suppression, 0.005..0.45m, LED, Red, NPN, Cnct, M8, Metal, 4pin

Features Include:

  • Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
  • Residual Ripple: 0 - 15 %, From UB
  • Switching Frequency: 1,000 Hz

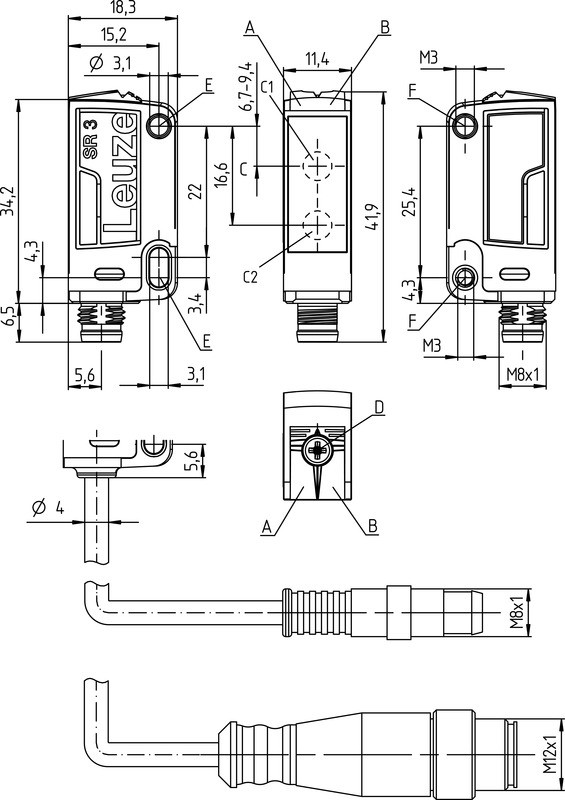

  • Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
  • Housing Material: Plastic PC-ABS
  • Lens Cover Material: Plastic/PMMA
  • Type of Fastening: Via optional mounting device, Through-hole mounting

Connection:

  • Type of Connection: Connector
  • Thread Size: M8
  • Material: Metal
  • Number of Pins: 4-pin

Optical Data:

  • Black-White Error: <10% up to 220 mm
  • Operating Range, White 90%: 0.005 - 0.45 m
  • Operating Range, Gray 18%: 0.01 - 0.34 m
  • Operating Range, Black 6%: 0.015 - 0.22 m
  • Operating range limit: 0.005 - 0.45 m
  • Adjustment range: 15 - 450 mm
  • Light Source: LED, Red
