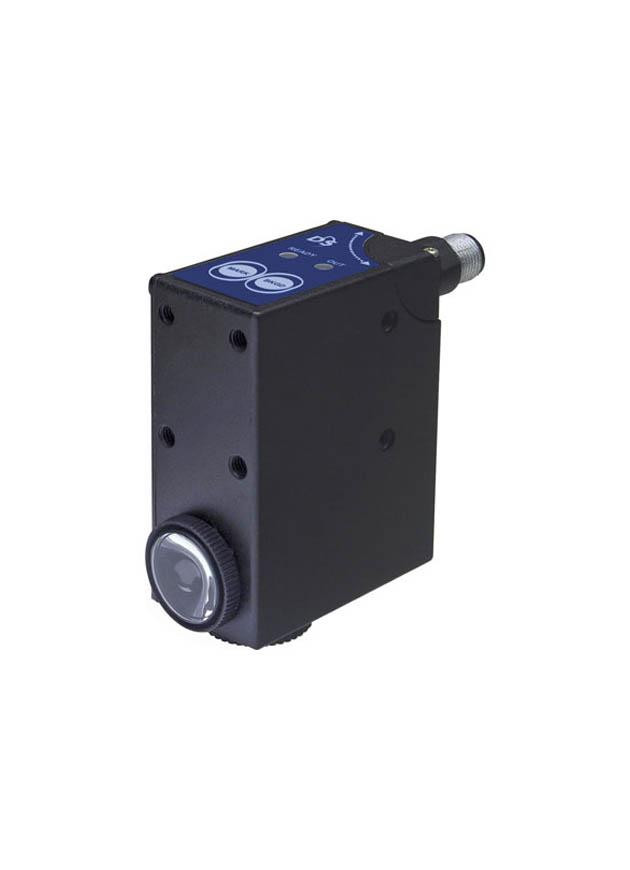

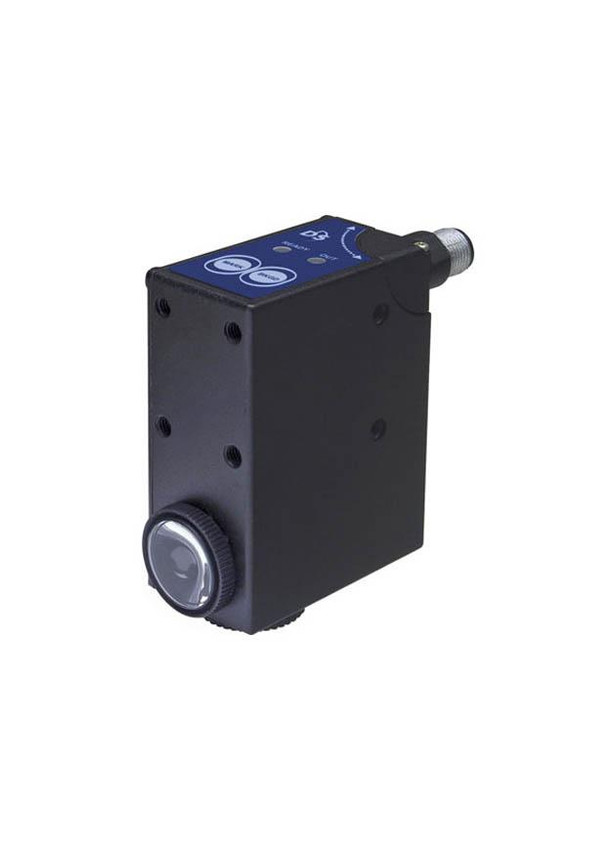

TLU-111

Series Features Include:

• Power supply: 10 - 30 Vdc limit values; reverse polarity protection
• Ripple: 2 Vpp max.
• Current consumption: (output current excluded): 80 mA max.
• Output: NPN or PNP, pull down/up resistance 10 kΩ (short-circuit protection)
• Output current: 200 mA max.
• Analog output: 0 - 2 V ± 10% (white 90%); 5.5 V max.; ripple 40 mVpp max.; output resistance 2.2 kΩ
• Output saturation voltage: 1V max. NPN versions / 2V max PNP versions
• Response time: 50 μs max. / 25 μs max. (TLμ-4xx/5xx)
• Switching frequency: 10 kHz max. / 20 kHz max. (TLμ-4xx/5xx)
• Timing function: 20 ms minimum output ON
• Indicators: OUTPUT LED (RED) / READY LED (GREEN)
• Setting: by pushbuttons / by wires; 4 settings storage cable version
• Retention data: nonvolatile EEPROM memory
• Operating temperature: -10 - 55 °C
• Storage temperature: -20 - 70 °C
• Electric shock protection: Class 1
• Operating distance: 9 mm (TLμ-x1x/4xx/5xx) / 18 mm (TLμ-x6x)
• Minimum spot dimension: 1.5 x 5 mm (TLμ-x1x) / 2 x 7 mm (TLμ-x6x) / ∅ 3 mm (TLμ-4xx/5xx)
• Depth of field: ± 3 mm (TLμ-x1x/4xx/5xx) / ± 4 mm (TLμ-x6x)
• Emission type: green (526 nm) / red (630 nm) with automatic selection or white (400-700 nm)
• Ambient light rejection: according to EN 60947-5-2
• Vibration: 0.5 mm amplitude, 10 … 55 Hz frequency, in every axis (EN60068-2-6)
• Shock resistance: 11 ms (30 G) 6 shock in every axis (EN60068-2-27)
• DARK/LIGHT selection: teach-in procedure
• Housing: ZAMA
• Protection class: IP67
• Connections: 3 m shielded cable ∅ 6.1 mm / M12 4-pole connector
• Weight: 450 g. max. cable versions / 310 g. max. connector versions
