Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Type of PhotoelectricGeneral Purpose Photoelectric
All - Specific RatingsIP67

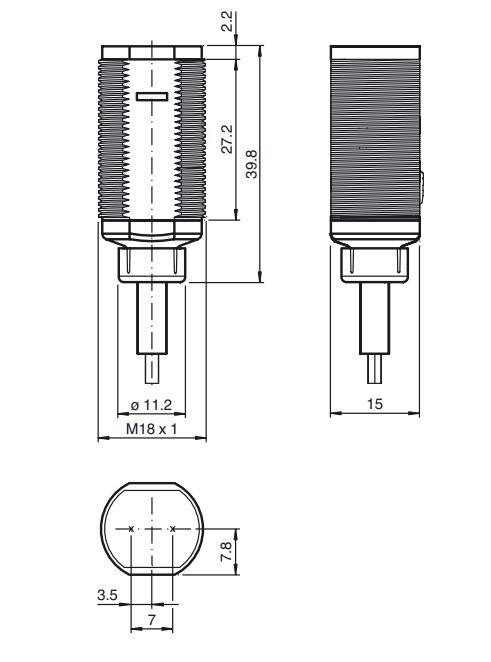

Size18mm
Warranty18 Months
Weight0.5
Series Features Include:
Efficient Line in a short M18 plastic housing for standard applications
Very high detection range
4 LEDs indicator for 360° visibility
Optimized potentiometer design for a clear control button layout in the application
Version with front optical face
DC voltage version
Operating voltage: 10 - 30 V DC
Switching type: dark on
Signal output: 1 NPN, short-circuit protected open collector
Switching voltage: max. 30 V DC
Switching current: max. 100 mA
Effective detection range: 0 - 6.5 m
Reflector distance: 0.05 - 6.5 m
Threshold detection range: 8 m
Reference target: reflector, C110-2
Light source: LED
Light type: modulated visible red light , 640 nm
Operation indicator: LED green, statically lit Power on
Function indicator: LED yellow: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF when light beam is interrupted
