50127045
Alt: LS46C.8-M12, Non-Cancellable / No Returns
$132.00

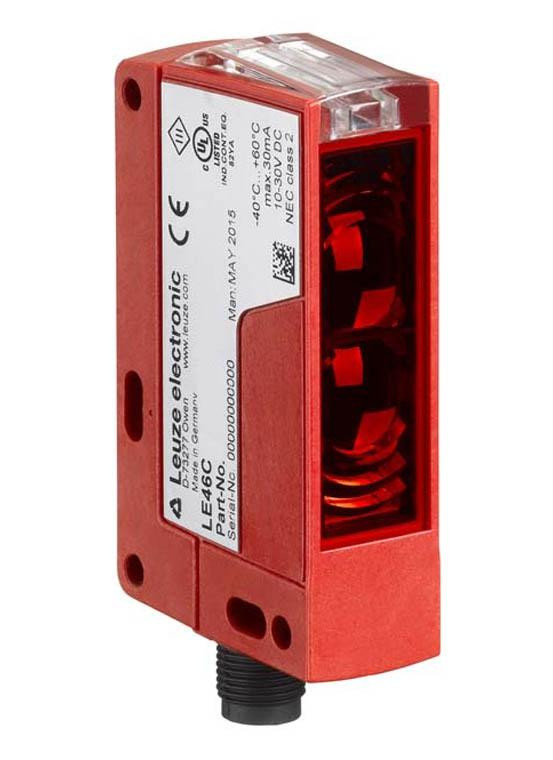

Photoelectric Sensor Transmitter, Throughbeam, 0-150m, LED, Red, Connector, M12, Plastic, 4-Pin, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectirc, Throughbeam, Transmitter 0..150m, LED, Red, Connector, M12, Plastic, 4pin
Specifications
Alternate Part Number
LS46C.8-M12, Non-Cancellable / No Returns
Connection
4-Pin, Straight
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Through Beam
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
See Specs
Size
12mm
Warranty
2 Years
Weight
0.25
Features Include:
- Operating Principle: Throughbeam principle
- Device Type: Transmitter
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15% From UB
- Open-Circuit Current: 0 - 20 mA
- Dimension (W x H x L): 20.5 mm x 76.3 mm x 44 mm
- Housing Material: Plastic, PC-PBT
- Lens Cover Material: Plastic/PMMA
- Type of Fastening: Via optional mounting device, Through-hole mounting
Connection:
- Type of Connection: Connector
- Thread Size: M12
- Material: Plastic
- Number of Pins: 4-pin
Optical Data:
- Operating Range: 0.5 - 120 m
- Operating Range Limit: 0 - 150 m
- Light Source: LED, Red
