DLN-S3RVP-J
Alt: DLN Series
$116.45

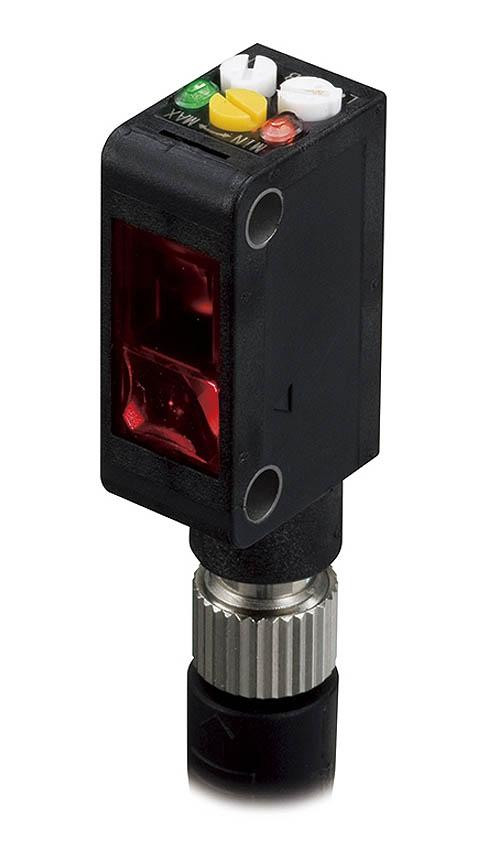

Photo Sensor, 30mm, PNP, Short, BGS/FGS Selector, 12-24VDC, Light ON/Dark ON, M8 Connector, IP67
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Takex's DLN series is BGS (Background Suppression)/FGS (Background Recognition BGR) selectable!
Background Suppression sensors illuminate the detection object and the reflection is detected by the difference in light angles to and from the sensor.
Unlike diffusion reflective sensors, this group of sensors incorporates circuitry and optics to reduce or eliminate variations in received signal strength caused by: material on the lens, quality and variations in the material or color of the object being detected, etc.
- BGS/FGS dual function selectable
- BGS: Background suppression
- FGS: Background recognition (BGR)
- NPN/PNP dual output
- NPN/PNP primary output models available
- Mutual interference prevention function
Specifications
Connection
w/Cable
Light Source
LED
NPN or PNP
NPN/PNP Selectable
Light On/Dark On
Light ON/Dark ON
Sensing Method
Background Suppression
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67
Series
DLN Series
Size
Rectangular
Warranty
1 Year
Alternate Part Number
DLN Series
Weight
0.1
Features Include:
- Sensing Distance: 10 to 30mm
- Ambient Light: 5,000 lx or less
- Ambient Temperature: -25 to +50°C
- Storage Temperature: -40 to +70°C (non-freezing/non-condensing)
- Ambient Humidity: 35 to 85%RH (non-condensing)
- Protective Structure: IP67
- Vibration: 10 to 55Hz double amplitude/1.5 2 hours each in 3 directions
- Shock: 500 m/s2 3 times each in 3 directions
- Dielectric Withstanding: 1,000 VAC 1 minute
- Insulation Resistance: 500 VDC megger, 20MΩ or more
