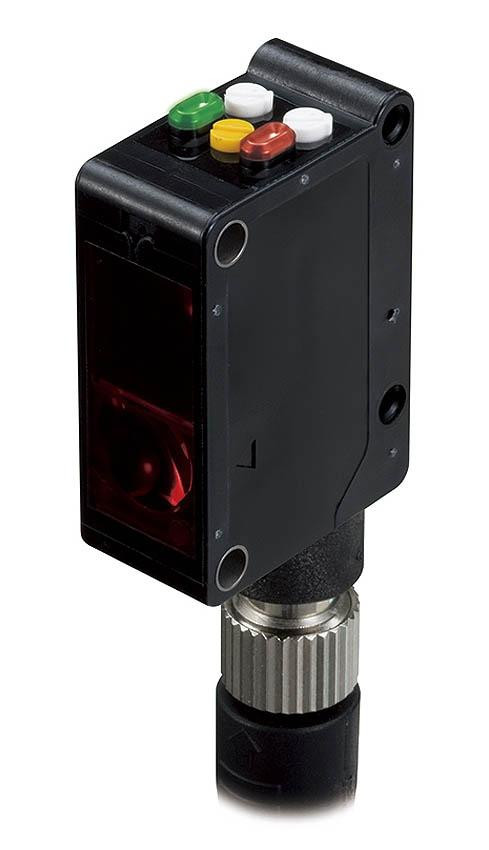

Takex's DLN series is BGS (Background Suppression)/FGS (Background Recognition BGR) selectable!
Background Suppression sensors illuminate the detection object and the reflection is detected by the difference in light angles to and from the sensor.
Unlike diffusion reflective sensors, this group of sensors incorporates circuitry and optics to reduce or eliminate variations in received signal strength caused by: material on the lens, quality and variations in the material or color of the object being detected, etc.
BGS/FGS dual function selectable
BGS: Background suppression
FGS: Background recognition (BGR)
NPN/PNP dual output
NPN/PNP primary output models available
Mutual interference prevention function
Features Include:
Sensing Distance: 10 to 150mm
Ambient Light: 5,000 lx or less
Ambient Temperature: -25 to +50°C
Storage Temperature: -40 to +70°C (non-freezing/non-condensing)
Ambient Humidity: 35 to 85%RH (non-condensing)
Protective Structure: IP67
Vibration: 10 to 55Hz double amplitude/1.5 2 hours each in 3 directions
Shock: 500 m/s2 3 times each in 3 directions
Dielectric Withstanding: 1,000 VAC 1 minute
Insulation Resistance: 500 VDC megger, 20MΩ or more
