PH18CNR65PAM1SA
Carlo Gavazzi

PH18CNR65PAM1SA

Alt: Minimum Order 5 Pieces, Price per Piece

$72.80

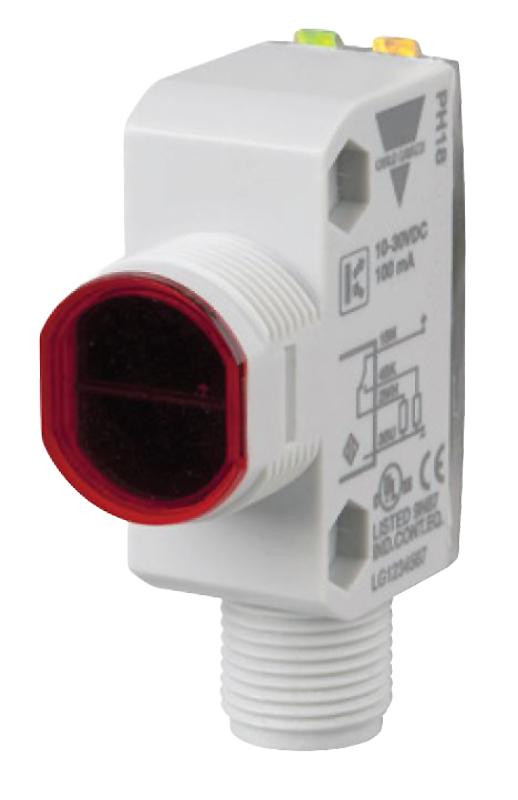

Photoelectric Retroreflective Sensor, M18 Square Housing, 6500mm (6.5m) Range, Infrared Modulated Light 850nm, 10-30VDC Power Supply, PNP Output, NO/NC, Light and Dark Switching, M12 4-pin Plug, IP69K

Weight:
0.10 LBS
Minimum Purchase:
5 units
Adding to cart… The item has been added
Conforms to ECOLAB, IP67 and IP69K!
Description

Carlo Gavazzi's PA18 and PH18 series of sensors are cost effective, compact, have a robust ABS housing and offer an easy to clean solution for a wide range of appilcations!

Both series conform to the standards of ECOLAB, IP67 and IP69K. They also offer NO and NC all-in-one, allowing you to choose which you need.

Both of these series have longer sensing distances, high speed detection and improved LED diagnostics. Being resistant to high temperatures, high-pressure cleaning, strong cleaning agents and disinfectants, these sensors are especially well suited for reliable detection in harsh environments.

The PA/PH18 series is available in a variety of versions:  The PA18 comes in an axial or a radial version and the PH18 in a square version. Both PA18 and PH18 are available as diffuse reflective with narrow or wide viewing angle, diffuse reflective with background suppresion, retro-reflective, polarized retro-reflective and through-beam sensors.

Their PH18 series combines a rectangular and M18 housing for universal mounting! This sensor can be mounted to a bracket or as a traditional M18 sensor and is IP69K rated for high pressure/high temperature washdowns.

Installation of the PA/PH18 series is easy using a new mounting bracket, APA/APH18-MB1. This simple accessory results in a smooth and neat finish and a space saving, easy-to-clean application.

Features Include:

  • Miniature sensor range
  • Range: 6.5 m
  • Sensitivity adjustment by potentiometer
  • Modulated, infrared light 850 nm
  • Light Spot Diameter: Ø 164 mm @ 3.25 m
  • Supply voltage: 10 to 30 VDC
  • Output Function Type: Make & break switching, PNP
  • Switching function: NO and NC
  • Output: 100 mA
  • Degree of protection IP67, IP69K
  • LED indication for output, stability and power ON
  • Protection: reverse polarity, short circuit and transients
  • Connection: Plug
  • Excellent EMC performance
  • Housing Type: M18 Square type
  • Housing Material: Body: ABS, grey, Backpart: PC-Transparent, Front material: PMMA, red
