PH18CND10PASA
Alt: Minimum Order 5 Pieces, Price per Piece

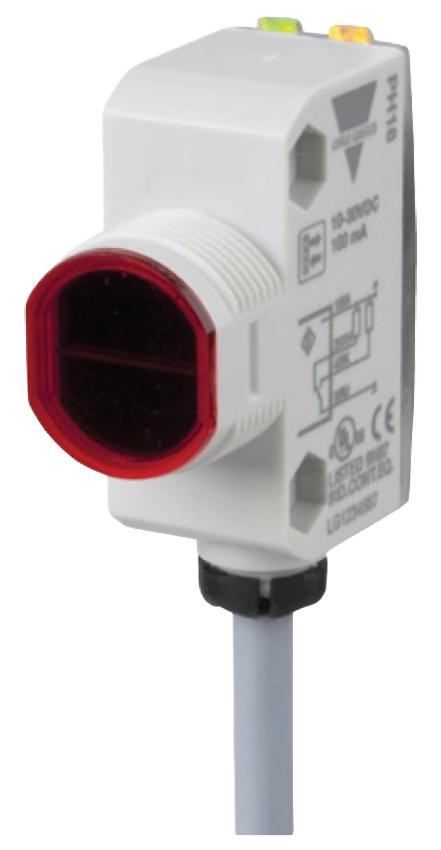

Photoelectric Diffuse Reflective Sensor, M18 Square Housing, 1000mm (1m) Range, Red Modulated Light 625nm, 10-30VDC Power Supply, PNP, NO/NC, 2m Grey PVC Cable, IP67/IP69K
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 5 units
Carlo Gavazzi's PA18 and PH18 series of sensors are cost effective, compact, have a robust ABS housing and offer an easy to clean solution for a wide range of appilcations!
Both series conform to the standards of ECOLAB, IP67 and IP69K. They also offer NO and NC all-in-one, allowing you to choose which you need.
Both of these series have longer sensing distances, high speed detection and improved LED diagnostics. Being resistant to high temperatures, high-pressure cleaning, strong cleaning agents and disinfectants, these sensors are especially well suited for reliable detection in harsh environments.
The PA/PH18 series is available in a variety of versions: The PA18 comes in an axial or a radial version and the PH18 in a square version. Both PA18 and PH18 are available as diffuse reflective with narrow or wide viewing angle, diffuse reflective with background suppresion, retro-reflective, polarized retro-reflective and through-beam sensors.
Their PH18 series combines a rectangular and M18 housing for universal mounting! This sensor can be mounted to a bracket or as a traditional M18 sensor and is IP69K rated for high pressure/high temperature washdowns.
Installation of the PA/PH18 series is easy using a new mounting bracket, APA/APH18-MB1. This simple accessory results in a smooth and neat finish and a space saving, easy-to-clean application.
Series Features Include:
- Miniature sensor range
- Range: 1 m
- Sensitivity adjustment by potentiometer
- Modulated, red light 625 nm
- Supply voltage: 10 to 30 VDC
- Output: 100 mA, NPN or PNP, N.O & N.C.
- Degree of protection IP67, IP69K
- LED indication for output, stability and power ON
- Protection: reverse polarity, short circuit and transients
- Connection: Cable
- Housing: Body: ABS, grey / Backpart: PC-Transparent /Front material: PMMA, red
- Excellent EMC performance
Technical Information:
