WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.
Magnetic starters are designed to protect and operate motors.
There are a number of starters available from WEG:
Non-combination starters:
ESW series is metallic, NEMA 1, across the line starter, three phase
ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
ESWX series is metallic, NEMA 7/9, explosion proof starters

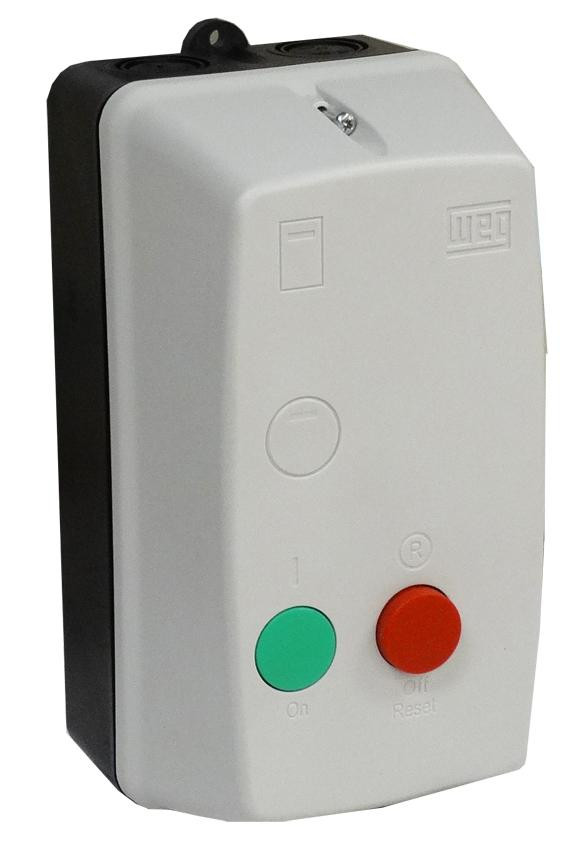

PESW series is non-metallic, NEMA 4X, across the line starter, three phase
PESWS series is non-metallic, NEMA 4X, across the line starter, single phase
Combination starters:
ESWC series
ESWE series
ESWF series
Marshall Wolf Automation is your authorized WEG distributor!
Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.
Features Include:
Start Type: Direct Single-phase
Control voltage: CWB 180-208V50HZ/208-240V60HZ
Control devices: E-Reset
Overload relay: 8-12.5 A (RW27)
Dimensions (H x W x D): 8.622in x 4.4882in x 4.4331in

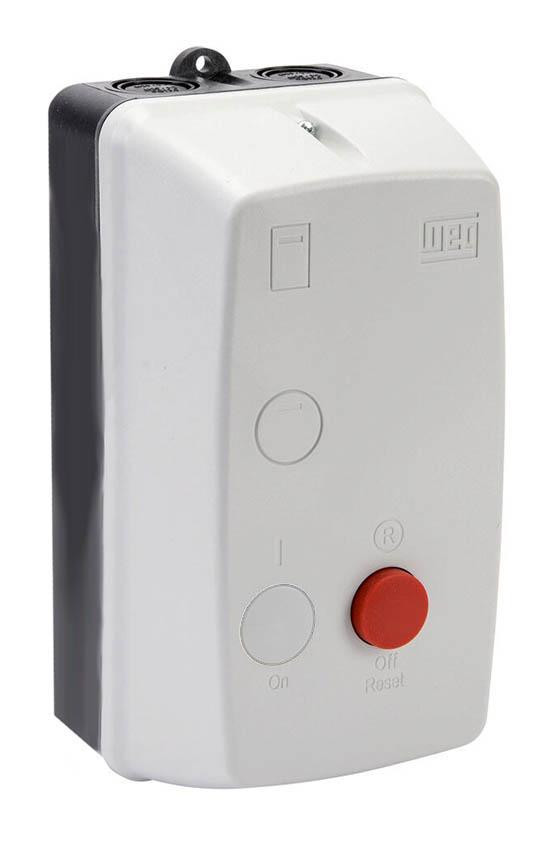

Enclosed Starter, 12 Amp (12A) CWB Contactor, 208-240VAC Coil Voltage, Reset Only, 8-12.5A Overload Range, 3 Phase, NEMA 4X, Non-Metallic, Non Reversing Non-Combination Across the Line Starter, M04 Box: 9.5 x 5.5 x 5.0"(HWD)
Enclosed Starter, 12 Amp (12A) CWB Contactor, 120VAC Coil Voltage, Reset Only, 8-12.5A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
Enclosed Starter, 12 Amp (12A) CWB Contactor, 120VAC Coil Voltage, Start/Stop, 8-12.5A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
Enclosed Starter, 80 Amp (80A) CWB Contactor, 480VAC Coil Voltage, Reset Only, 57-70A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
Enclosed Starter, 12 Amp (12A) CWB Contactor, 208-240VAC Coil Voltage, Start/Stop, 8-12.5A Overload Range, 3 Phase, NEMA 4X, Non-Metallic, Non Reversing Non-Combination Across the Line Starter, M04 Box: 9.5 x 5.5 x 5.0"(HWD)
Enclosed Starter, 9 Amp (9A) CWB Contactor, 120VAC Coil Voltage, Start/Stop, 4-6.3A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
Enclosed Starter, 9 Amp (9A) CWB Contactor, 600V Coil Voltage, Reset Only, 2.8-4A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)
Enclosed Starter, 50 Amp (50A) CWB Contactor, 208-240VAC Coil Voltage, Reset Only, 32-50A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M06 Box Dimensions: 13 x 7.5 x 5.6 (HWD)
