Available Now! PESW-B38D15EX-R69

Product image is representative only, please verify specifications.

Available Now! (2 in stock)
Weg

PESW-B38D15EX-R69

Alt: 14942955, This item replaced PESW-32V18EX-R34

$160.07

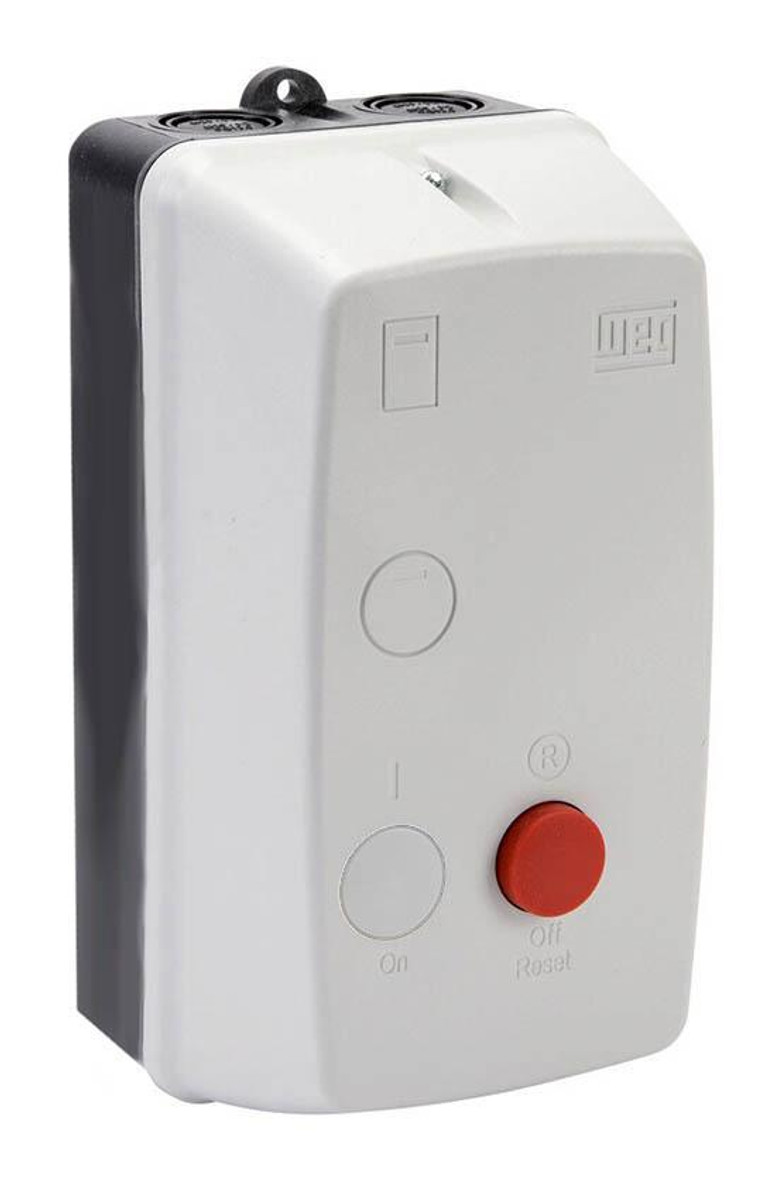

Enclosed Starter, 10hp@230V / 20hp@460V / 25hp@575V, 32A, 120V Coil, Reset Only, 22-32A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

Weight:
3.35 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Non-reversing, non-combination NEMA 4X magnetic starter that meets IEC standards and UL horsepower ratings!
Description

WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.

Magnetic starters are designed to protect and operate motors.

There are a number of starters available from WEG:

Non-combination starters:

  • ESW series is metallic, NEMA 1, across the line starter, three phase
  • ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
  • ESWX series is metallic, NEMA 7/9, explosion proof starters
  • PESW series is non-metallic, NEMA 4X, across the line starter, three phase
  • PESWS series is non-metallic, NEMA 4X, across the line starter, single phase

Combination starters:

  • ESWC series
  • ESWE series
  • ESWF series

Marshall Wolf Automation is your authorized WEG distributor!

Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.



Features Include:

  • Start Type: Direct Three-phase
  • Control voltage: 120V50/60HZ
  • Rated operational voltage: Ue<=600V
  • Overload relay: 32-40 A (RW27)
  • Rated current (AC-3): 38A (CWB38)
  • Control devices: E-Reset
  • Dimensions (H x W x D): 8.622in x 4.4882in x 4.4331in
  • Degree of protection: TYPE4X
  • Starters Complements: Does Not Contain
  • Assembly method (start key): Plastic Crate
  • IEC contactors inside
  • Trip class 10 bimetallic overload relays
  • Phase-loss sensitivity protection
  • Automatic and manual RESET options
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Weg

PESW-B38V24EX-R69

Enclosed Starter, 38 Amp (38A) CWB Contactor, 208-240VAC Coil Voltage, Reset Only, 25-40A Overload Range, 3 Phase, NEMA 4X, Non-Metallic, Non Reversing Non-Combination Across the Line Starter, M04 Box: 9.5 x 5.5 x 5.0" (HWD)

$160.07

Weg

PESWS-B38D15EX-RM69

Enclosed Starter, 38 Amp (38A) CWB Contactor, 120VAC Coil Voltage, Reset Only, 25-40A Overload Range, Single Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

$136.64

Weg

PESW-B38D39EX-R69

Enclosed Starter, 38 Amp (38A) CWB Contactor, 480VAC Coil Voltage, Reset Only, 25-40A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

$160.07

Weg

PESW-B9V24AX-R62

Enclosed Starter, 2hp@230V / 5hp@460V, 9A, 208-240V Coil, Start / Stop+Reset, 4X, 5.6-8A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$104.72

Weg

PESWS-B18V24AX-RM66

Enclosed Starter, 1hp@115V / 3hp@230V, 18A, 208-240V Coil, Start / Stop+Reset, 11-17A Overload Range, Single Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$90.76

Weg

PESW-B18D15EX-R66

Enclosed Starter, 5hp@230V / 10hp@460V / 15hp@575V, 18A, 120V Coil, Reset Only, 11-17A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$93.75

Weg

PESWS-B32V24EX-RM68

Enclosed Starter, 2hp@115V / 5hp@230V, 25A, 208-240V Coil, Reset Only, 22-32A Overload Range, Single Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$89.76
Available Now!

Weg

PESW-B9D39AX-R62

Enclosed Starter, 2hp@230V / 5hp@460V, 9A, 480V Coil, Start / Stop+Reset, 4X, 5.6-8A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$104.72

Weg

PESW-B9D39EX-R62

Enclosed Starter, 2hp@230V / 5hp@460V, 9A, 480V Coil, Reset Only, 5.6-8A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$78.29
