GFDP1-RJ45-R-32

This is a panel interface with outlets inside the panel and outside the panel!

You may have been using GracePort who was the only manufacturer with this feature. Mencom now has it as well!

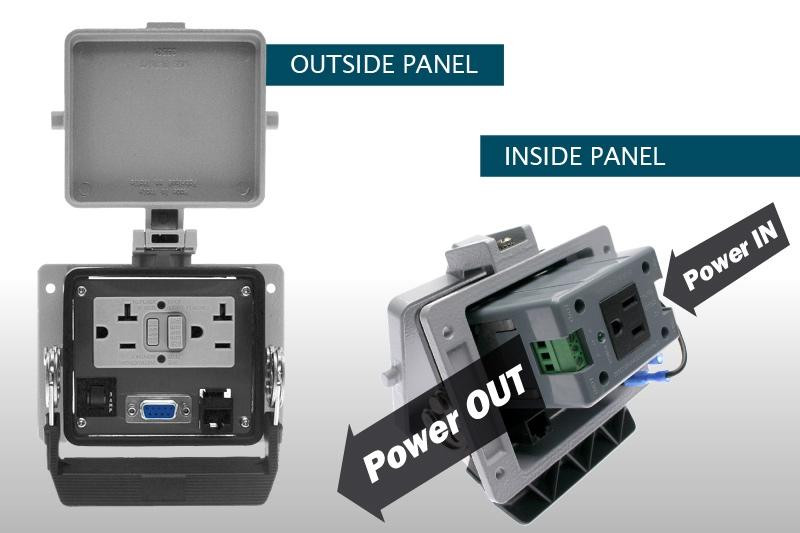

• The GFDP1 power port features three GFCI-protected receptacles; two outside and one iinside the panel
• GFCI outlet facing the outside of the panel that feeds the single outlet inside the panel
• Simple solution to comply with NFPA 79
• UL type 4, 4X, 12
• IP65 with Mencom metal/low profile housings
• Also includes an RJ45 port and a reset switch

A Panel Interface Connector (PIC) is a device that typically mounts to the outside of a control panel housing a PLC, computer, or other type of programmable device. The PIC, which houses convenient pass through connections, allows the user to interface with the computer, PLC, or other devices inside the control panel.

These access ports eliminate the need to open the panel door, creating a safer environment on the shop floor, and helping the user adhere to the safety standards set forth by NFPA 70E.

This part will cross over from Graceport P-R2-K3RF3-M2.

Features Include:

• Unique inside-outside power port
• Three GFCI protected receptacles; two outside and one inside the panel
• Simple solution to comply with NFPA 79
• 120V GFCI receptacle to 120V Simplex receptacle
• Easy and safe TEST/RESET outside the panel
• Finger-safe cover
• Outgoing terminals for GFCI protected power
• UL Type 4, 4X, 12
• IP65 with Mencom metal/low profile housings

Need More Information?

• Mencom GFDP1-RJ45-R-32 Datasheet
