PA18CRP40NASA
Carlo Gavazzi

PA18CRP40NASA

Alt: Minimum Order 5 Pieces, Price per Piece, , PA 18 CRP 40 NASA

$72.00

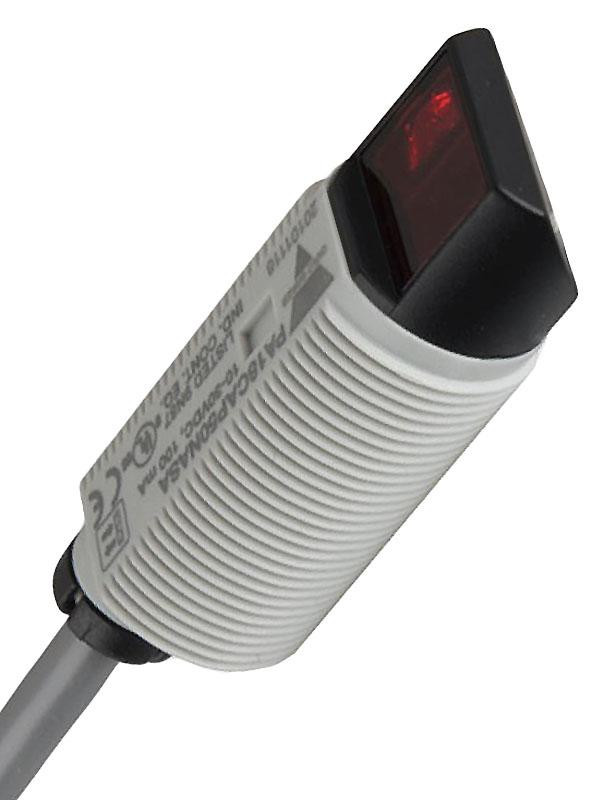

Photoelectric Polarized Retroreflective Sensor, M18 Radial, 10-30VDC, 4m Range, NPN NO/NC, 2m Cable

Weight:
0.50 LBS
Minimum Purchase:
5 units
Adding to cart… The item has been added
Conforms to ECOLAB, IP67 and IP69K!
Description

Carlo Gavazzi's PA18 and PH18 series of sensors are cost effective, compact, have a robust ABS housing and offer an easy to clean solution for a wide range of appilcations!

Both series conform to the standards of ECOLAB, IP67 and IP69K. They also offer NO and NC all-in-one, allowing you to choose which you need.

Both of these series have longer sensing distances, high speed detection and improved LED diagnostics. Being resistant to high temperatures, high-pressure cleaning, strong cleaning agents and disinfectants, these sensors are especially well suited for reliable detection in harsh environments.

The PA/PH18 series is available in a variety of versions:  The PA18 comes in an axial or a radial version and the PH18 in a square version. Both PA18 and PH18 are available as diffuse reflective with narrow or wide viewing angle, diffuse reflective with background suppresion, retro-reflective, polarized retro-reflective and through-beam sensors.

Their PH18 series combines a rectangular and M18 housing for universal mounting! This sensor can be mounted to a bracket or as a traditional M18 sensor and is IP69K rated for high pressure/high temperature washdowns.

Installation of the PA/PH18 series is easy using a new mounting bracket, APA/APH18-MB1. This simple accessory results in a smooth and neat finish and a space saving, easy-to-clean application.

Features Include:

  • Supply voltage: 10 to 30 VDC
  • Output: 100 mA, NPN or PNP, N.O & N.C.
  • Range: 4 m (radial)
  • Degree of protection: IP67, IP69K
  • Light Source: InGaAIP, LED, 625 nm
  • Light Type: Modulated, red light 625 nm
  • No Load Supply Current: ≤ 25 mA @ 24 VDC
  • Protection: Short-circuit, reverse polarity and transients
  • Sensitivity adjustment by potentiometer
  • LED indication for output, stability and power ON
  • Protection: reverse polarity, short circuit and transients
  • Excellent EMC performance
