EX9RD25A10
Alt: 1410025
$24.79

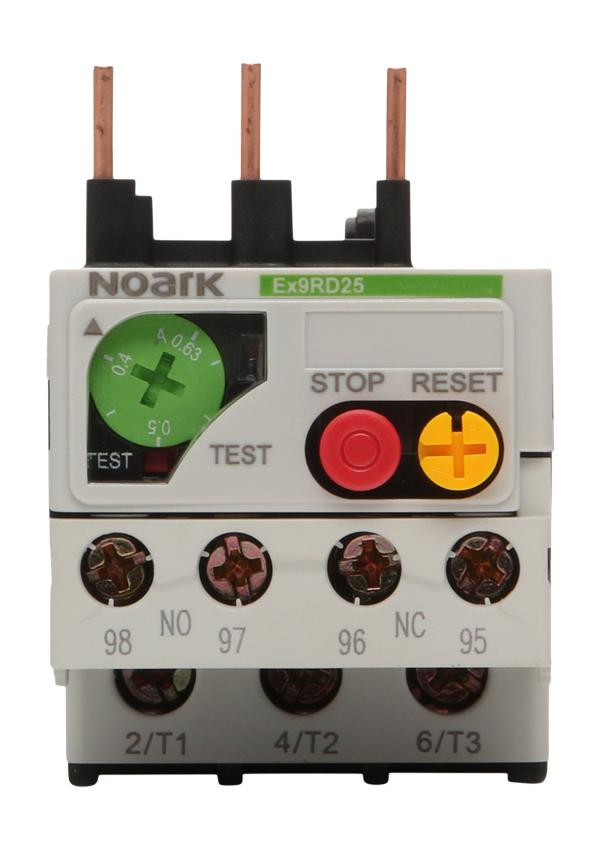

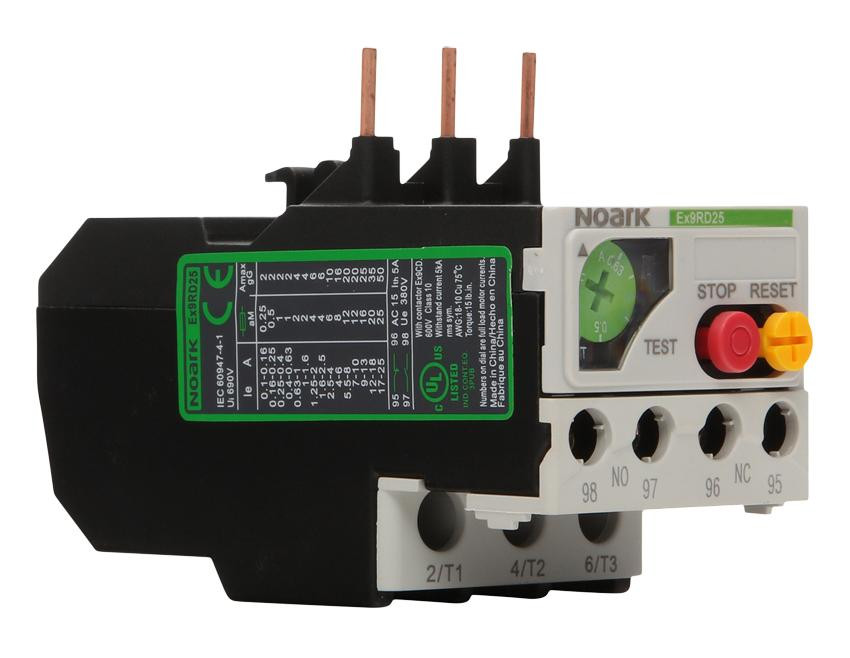

Overload Relay, Use with 9/12/18/25A Std, 7-10A, NR2-25G 7-10A, Use with EX9CDS/EX9CDR Contactors
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
NOARK offers a full line of circuit protection and industrial controls. Products include circuit breakers, motor contactors, overload relays, safety contactors and relays.
CHINT's NOARK electrical products were originally released in Shanghai in 2009. Shortly after they re-branded CHINT to the NOARK brand in the United States.
Noark offers a 5-year limited warranty on all of their products!
Features Include:
- Function: Thermal Overload
- Minimum Current: 7 A
- Maximum Current: 10 A
- Matched Fuse (aM): 12
- Matched Fuse (gG): 20
- Current: 25 A
- Compensation Temperature: -13 to 131 ºF, -25 to +55 ºC
- Use with Contactors: Ex9CM06~12
- Overload protection trip Class 10 A
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- STOP and TEST function
- Direct mount to contactors or 35 mm DIN rail mounting base option
Technical Information:
