EX9RD25A2.5
Alt: 1410021
$24.79

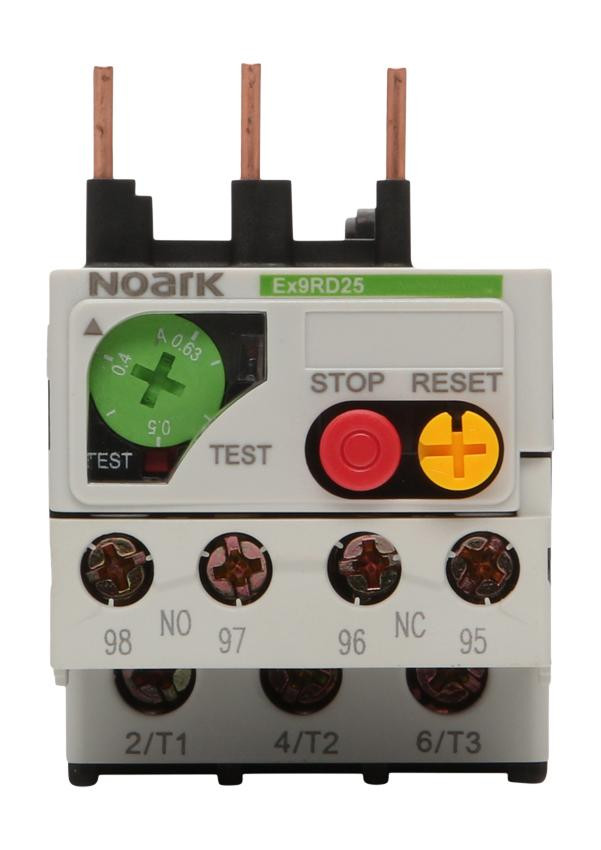

Overload Relay, Use with 9/12/18/25A Std, 1.6-2.5A, NR2-25G 1.6-2.5A, Use with EX9CDS/EX9CDR Contactor
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Function: Thermal Overload
- Minimum Current: 1.6 A
- Maximum Current: 2.5 A
- Matched Fuse (aM): 4
- Matched Fuse (gG): 6
- Current: 25 A
- Compensation Temperature: -13 to 131 ºF, -25 to +55 ºC
- Use with Contactors: Ex9CM06~12
- Overload protection trip Class 10 A
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- STOP and TEST function
- Direct mount to contactors or 35 mm DIN rail mounting base option
Technical Information:
