Product image is representative only, please verify specifications.
EX9RD11.5A2.5
Alt: 1410007
$17.90

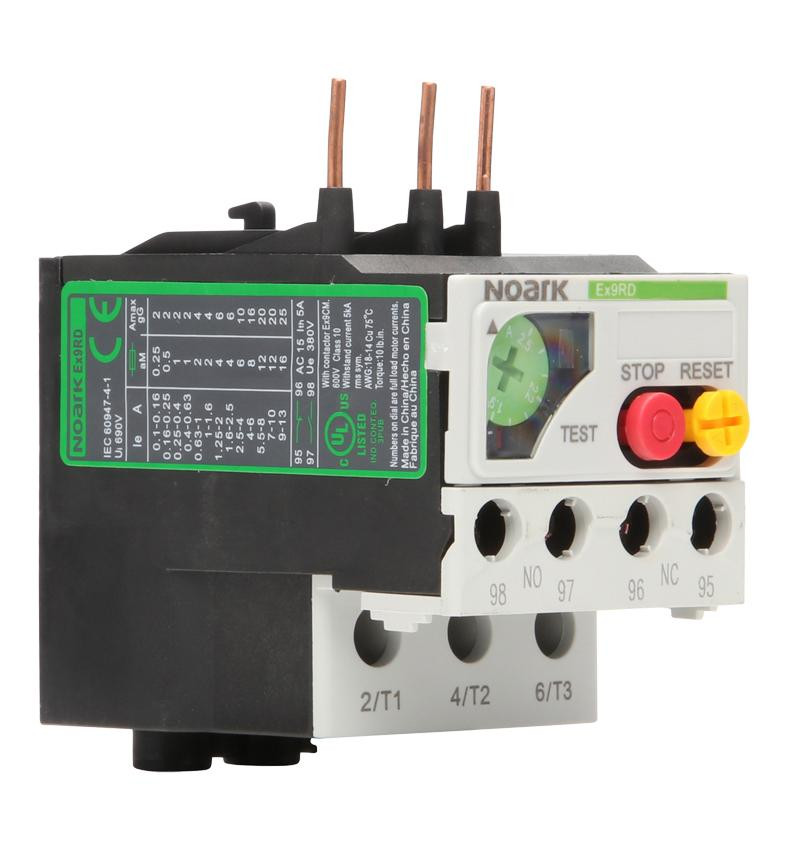

Overload Relay, Use with 6/9/12A Mini, 1.6-2.5A, NR2-11.5G 1.6-2.5A, Use with EX9C Mini Contactors
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Function: Thermal Overload
- Minimum Current: 1.6 A
- Maximum Current: 2.5 A
- Matched Fuse (aM): 4
- Matched Fuse (gG): 6
- Current: 11.5 A
- Compensation Temperature: -13 to 131 ºF, -25 to +55 ºC
- Use with Contactors: Ex9CM06~12
- Overload protection trip Class 10 A
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- STOP and TEST function
- Direct mount to contactors or 35 mm DIN rail mounting base option
Technical Information:
