1314001100
Alt: MT-95 74A 3K SCREW EXP
$123.86

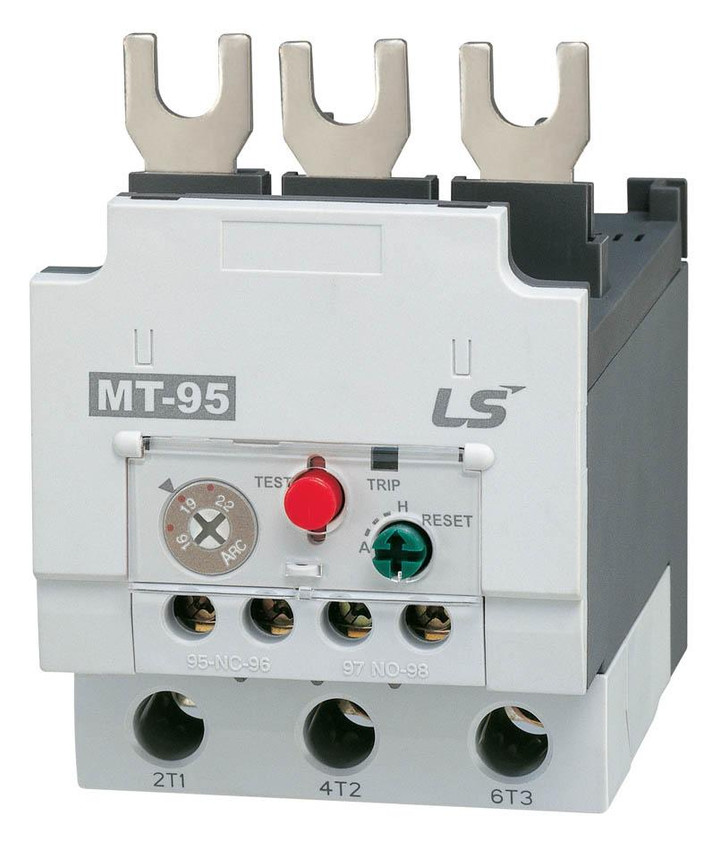

Overload Relay, MT-95 74A 3K, Class 10, Screw Terminals
- Weight:
- 1.10 LBS
- Minimum Purchase:
- 1 unit
Description
LSIS's Metasol series consists of IEC contactors and overload relays that are available in 25 models in 9 frame sizes.
You can DIN rail mount (no extra tools needed), they are simple to wire, screw terminals and there are 2 built-in NO contacts.
Front/side mountable accessories available.
18AF:
- Contactor MC-6a, 9a, 12a, 18a
- Overload Relay MT-12
22AF
- MC-9b, 12b, 18b, 22b
- Overload Relay MT-32
40AF
- MC-32a, 40a
- Overload Relay MT-32
65AF
- MC-50a, 65a
- Overload Relay MT-63
100AF
- MC-75a, 85a, 100a
- Overload Relay MT-95
150AF
- MC-130a, 150a
- Overload Relay MT-150
Features Include:
- Size: (W x H x D) 70 x 97 x 110 (mm)
- Setting current: 7 ~ 100A
- Rated operational voltage, Ue: 690V
- Rated impulse withstand voltage, Uimp: 6kV
- Trip class: 10A(Non-differential), 20(Class 20)
- Combination with Manual motor starters
- Various accessories
- KEMA, UL/CSA, CE certified
