Available Now! 1298002000
Available Now! (2 in stock)
LS Electric

1298002000

Alt: MT-32 34A 3K SCREW EXP

$48.16

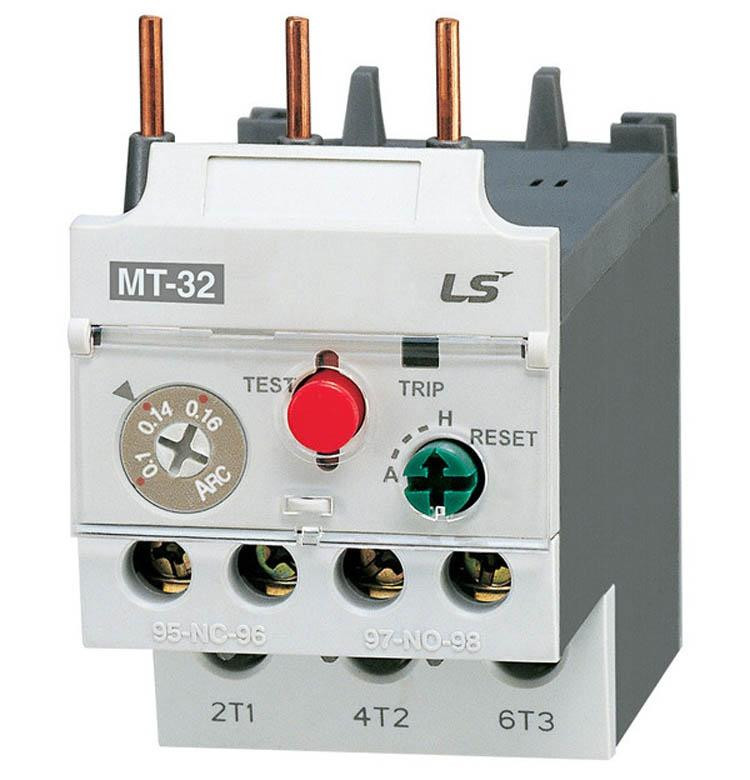

Overload Relay, MT-32 34A 3K, Class 10, Screw Terminals, Only Use with MC-9B, MC-12B, MC-18B, MC-32B, and MC-40B Series Contactors

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

LSIS's Metasol series consists of IEC contactors and overload relays that are available in 25 models in 9 frame sizes.

You can DIN rail mount (no extra tools needed), they are simple to wire, screw terminals and there are 2 built-in NO contacts.

Front/side mountable accessories available.

18AF:

  • Contactor MC-6a, 9a, 12a, 18a
  • Overload Relay MT-12

22AF

  • MC-9b, 12b, 18b, 22b
  • Overload Relay MT-32

40AF

  • MC-32a, 40a
  • Overload Relay MT-32

65AF

  • MC-50a, 65a
  • Overload Relay MT-63

100AF

  • MC-75a, 85a, 100a
  • Overload Relay MT-95

150AF

  • MC-130a, 150a
  • Overload Relay MT-150

Features Include:

  • Rated current : 6 ~ 800A with 9 Frame size

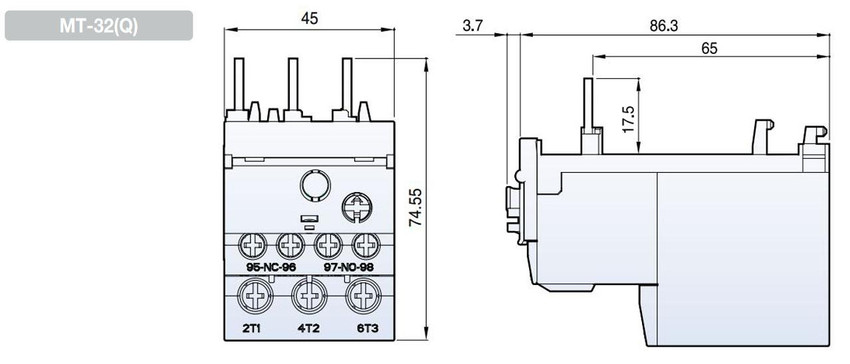

  • Size: (W x H x D) 45 x 75 x 90
  • Setting current: 0.1~40A
  • Rated operational voltage, Ue: 690V
  • Rated impulse withstand voltage, Uimp: 6kV
  • Trip class: 10A(Non-differential), 20(Class 20)
  • Combination with Manual motor starters
  • Various accessories
  • KEMA, UL/CSA, CE certified
Accessories
!
✓
