Weg
RW27-1D2-D008

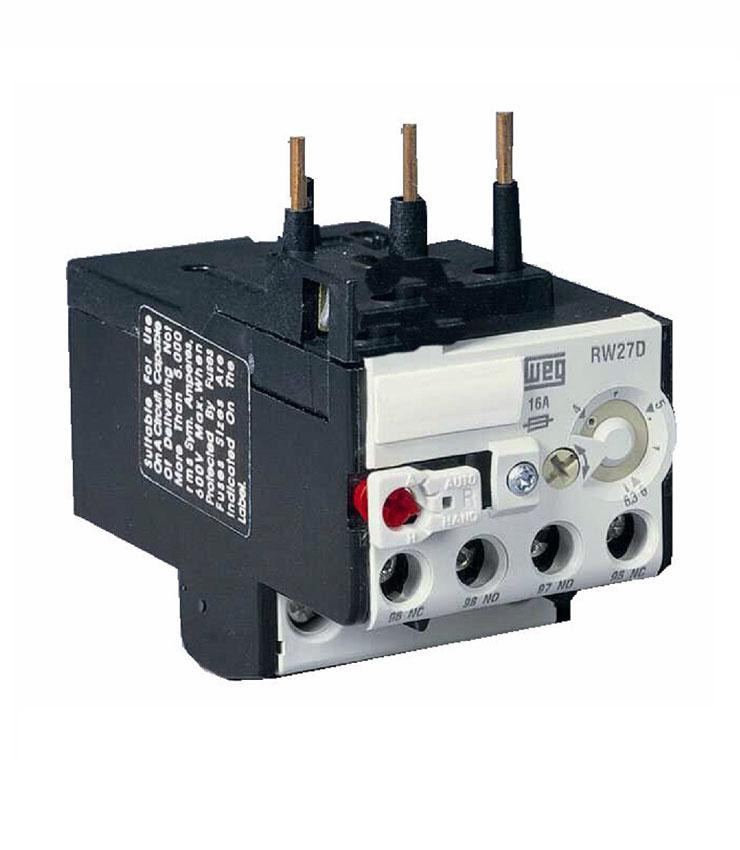

Overload Relay, 0.56-0.80A Range, 2NO Pole, Direct Mounting Type, 1D, for Contactor Models CWM9 to 40
$22.40
RW27-2D3-D008
Alt: 12140443
$28.00

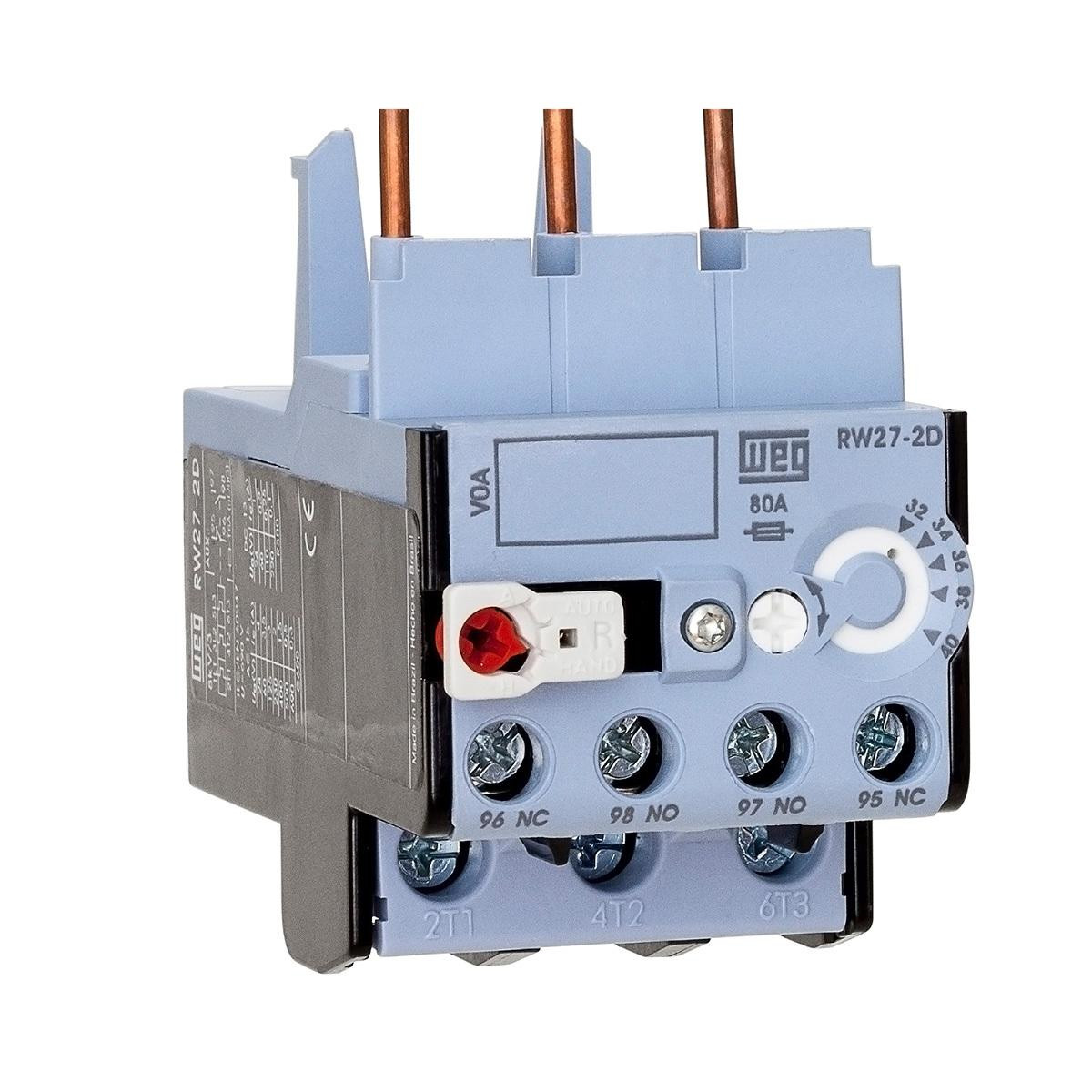

Overload Relay, Class 10, 3-Pole, 0.56-0.80A, Use with CWB9 to CWB38
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
WEG offers thermal overload relays in 3-pole versions up to 840A and 2-pole versions up to 80A for protecting motors in the event of overload or phase failure.
The RW series of thermal overload relays can be mounted directly on WEG contactors up to 105A and mounted separately from 112A to 800A.
Standard Features
- 2-pole and 3-pole versions available
- Trip class 10
- Adjustable current setting ranges
- Isolated N.C “Trip” and N.O “Alarm” auxiliary contacts
- Phase failure/unbalance sensitivity protection
- Selectable Manual/Auto RESET button with or without TEST
- Ambient temperature compensation from -13°F to +140°F
Wide Range of Accessories
- Panel mounting brackets
- External RESET pushbuttons
- Connector links
- Spare lugs
May 2023: Product line extention announcement -
- IEC contactors CWB 95 – 125A
- NEMA contactor CWBN size 3
- Thermal overload relays RW117-3D 63 – 140A associated with the above contactors
- Current Range: 0.56 - 0.80 A
- Rated Insulation Voltage Ui: 690 V
- Rated Insulation Voltage Ui (acc. to UL): 600 V
- Rated Impulse Withstand Voltage Uimp: 6 kV
- Rated Operational Frequency: 25 - 400 Hz
- Maximum Operating Frequency: 15 ops./h

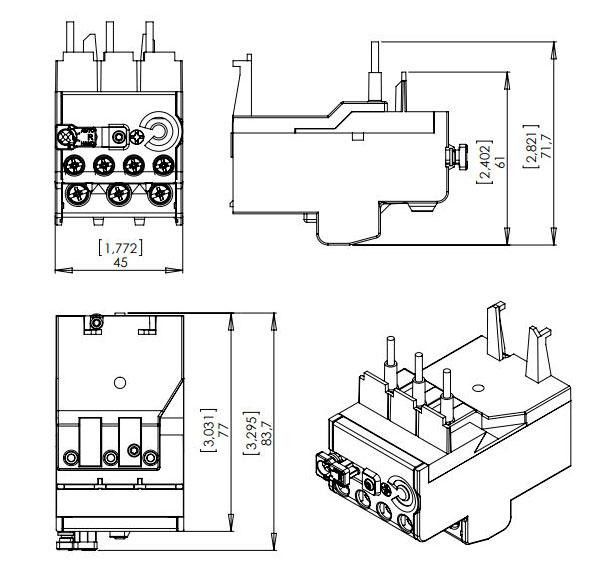

- Dimensions (H x W x D): 2.83 x 1.77 x 3.23 in
- Gross Weight: 0.36 lb
Technical Information:
