8801210600
Alt: NP600, NP620, NP640 Series
$120.00

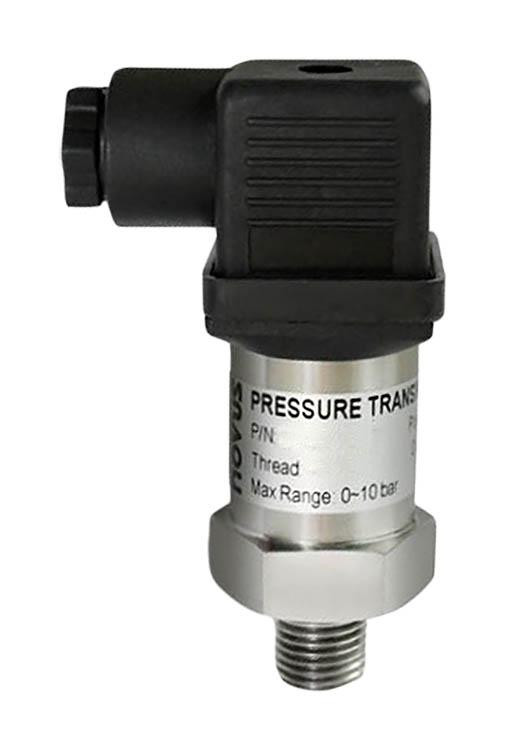

Oil-Filled 1/4 NPT, 4-20mA, 0…60 Bar (0…870 PSI), DIN IP65, Rangeable Relative Pressure Transmitters, Stainless Steel, 316L
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Power supply: 11 to 33 Vdc Internal protection against reversal polarity of voltage supply
- Resolution: < 0.02 % of the maximum range
- Output Signal (Output): Electric current, 4-20 mA, 2 wires. Meets NAMUR NE-43 recommendation. Maximum current: < 21.5 mA
- Process connection: external thread ¼ NPT, ½ NPT, ½ BSP or ¼ G
- Rangeability of the measurement: 3: 1
- Environmental conditions: -20 to 70 °C
- Materials in contact with the medium: 316L stainless steel
- Output: 4-20 mA 2-wire
- Electrical connection: DIN 43650 (EN 175301-803)
- Overpressure: 2 times the nominal pressure
- Dynamic response: <30 ms
- Accuracy, including hysteresis, linearity and repeatability: 0.25 % full scale (1.0 % for the 100 bar model)
Relative pressure ranges available:
- 0.1 MPa (1 bar)
- 0.4 MPa (4 bar)
- 1 MPa (10 bar)
- 2 MPa (20 bar)
- 4 MPa (40 bar)
- 10 MPa (100 bar)
Dimensions:
- ¼ NPT: Ø 27 x 88 mm
- ¼ G: Ø 27 x 89.4 mm
- ½ NPT: Ø 27 x 92.5 mm
- ½ BSP: Ø 27 x 86.5 mm
