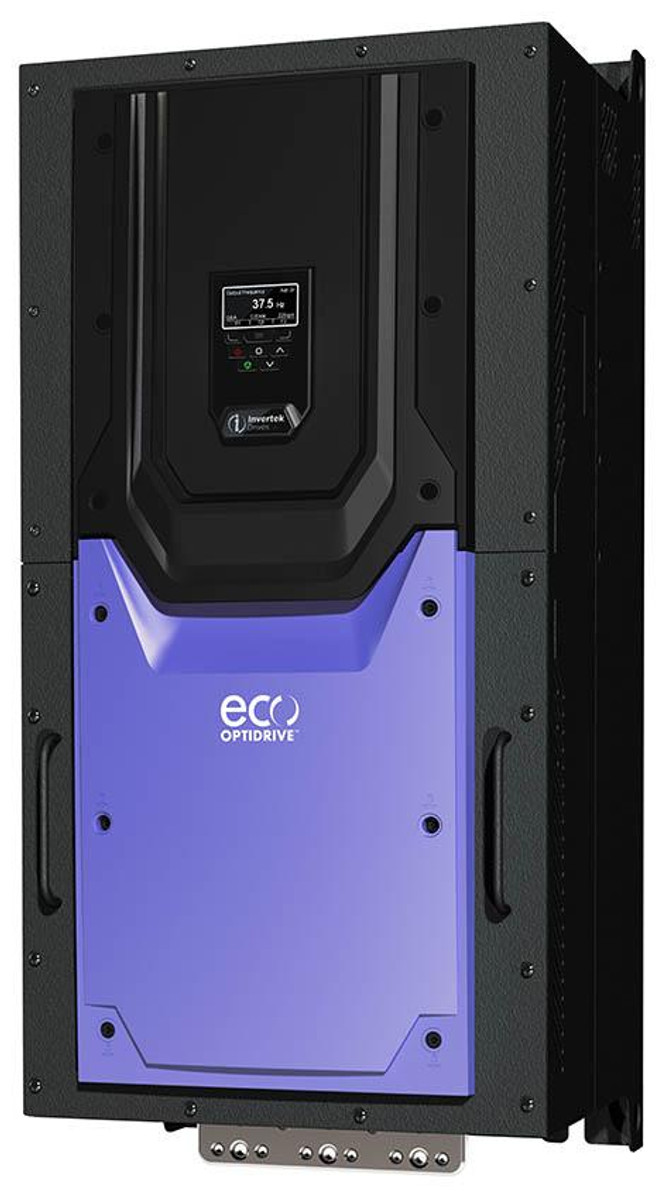

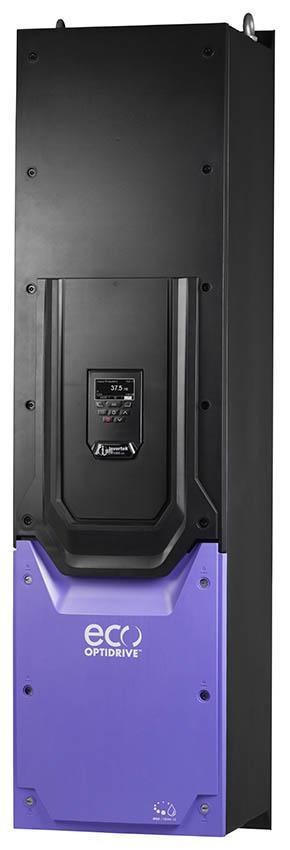

ODV-3-844800-3F1N-MN
Invertek

ODV-3-844800-3F1N-MN

Alt: ODV-3

$23,563.68

VFD, 400hp, 480 Amp (480A), 380-480V, 3 Phase Input/Output, TFT Display, EMC Filter, No Brake Transistor, Frame Size 8, IP55/NEMA12 (Free Non-Expedited LTL Freight from IL)

Weight:
363.76 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Energy efficient pump control, BACnet built-in as standard. Flexible pump station control with no PLC or pump control unit!
Description

Our Invertek Eco Optidrive is our pump control drive that offers energy efficient pumping with Optiflow.

This is your drive for fan and pump applicatioons!

The Eco series use film capacitors which do not allow derating for single phase operation. If you need advanced pump features with single phase input over 3hp we can apply eco firmware to the P2 series drives and run those on single phase. This must be done prior to shipping and will need to be noted on your order.

Features of this series:

  • Available from 1 to 400 hp, from 200 to 600 volt in single or 3 phase input
  • Eco vector motor control
  • BACnet is built-in as standard
  • Internal EMC filter
  • Optiflow Multiple Pump Control
  • Flexible pump station control with no PLC or pump control units (standard feature on this series)
  • Low harmonic design - EN 61000-3-12 compliant, low noise operation

Marshall Wolf Automation is your authorized Invertek distributor!

Features Include:

  • Supply Frequency: 48 - 62 Hz
  • Output Current: 248 A
  • Power Cycles: 120 per hour maximum, evenly spaced
  • Keypad: Built-in keypad as standard, optional remote mountable keypad
  • Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer

Analog Inputs:

  • Resolution: 12 bits
  • Response time: < 4ms
  • Accuracy: < 1% full scale
  • Parameter adjustable scaling and offset

Analog Outputs:

  • 0 to 10 Volts / 10 to 0 Volts
  • 0 to 20mA / 20 to 0mA
  • 4 to 20mA / 20 to 4mA

Overload Capacity:

  • 110% for 60 seconds
  • 165% for 4 seconds

Control Method:

  • Eco Sensorless Vector
  • Open Loop Permanent Magnet Vector
  • Open Loop BLDC Vector
  • Open Loop Synchronous Reluctance Vector

Technical Information:

Options and Communication Cards:

Application Notes:
