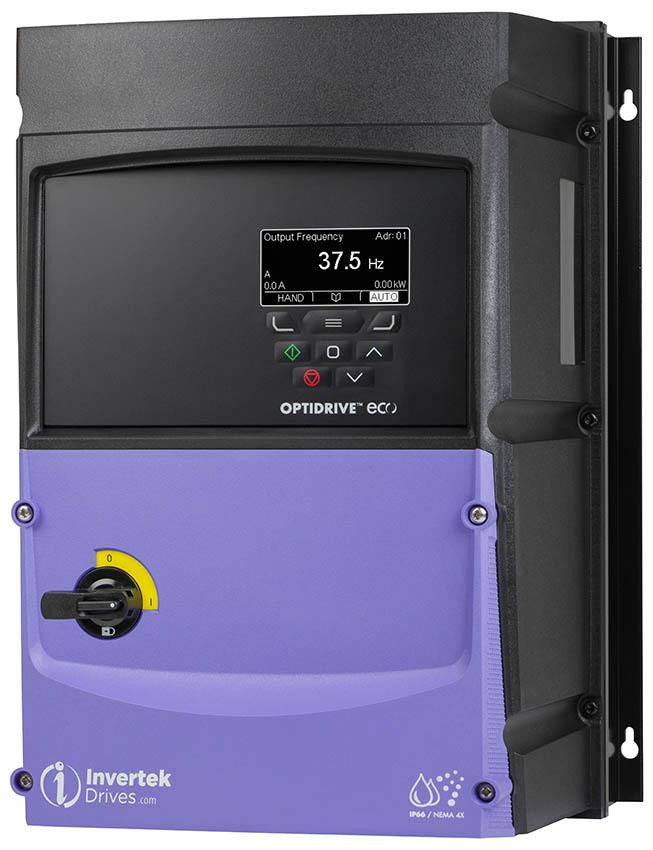

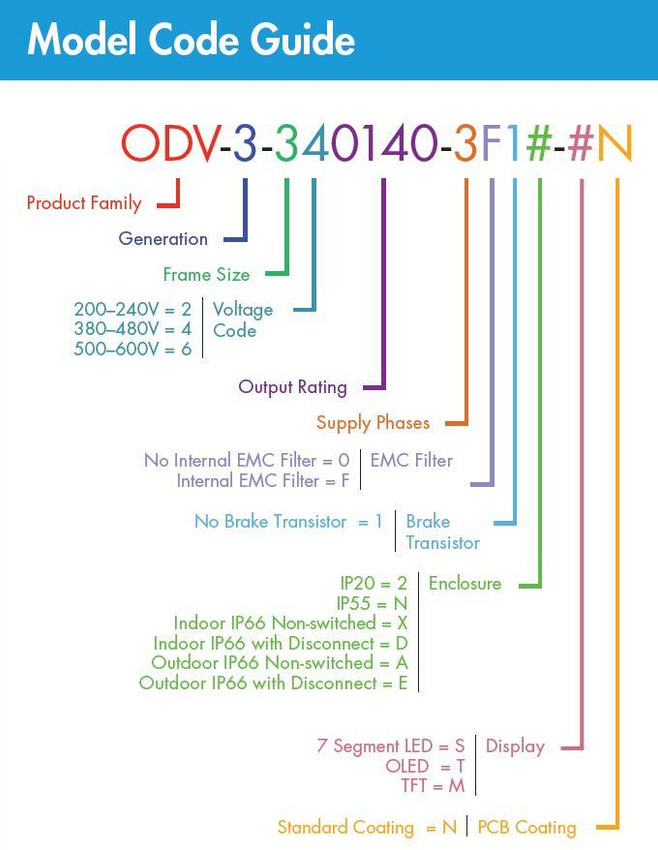

ODV-3-440460-3F1E-MN
Alt: Optidrive Eco Series
$2,836.32
VFD, 30hp, 22kW, 46 Amp, 380-480V, 3 Phase Input /Output, TFT Keypad, Internal EMC Filter, No Brake Transistor, ModbusRTU/BACnetMS/TP, NEMA 4X, Outdoor IP66 with Disconnect, OptiDrive™ Eco Low Harmonic, Frame 4: 14.2 x 9.5 x 10.7", 360 x 24
- Weight:
- 27.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our Invertek Eco Optidrive is our pump control drive that offers energy efficient pumping with Optiflow.
This is your drive for fan and pump applicatioons!
The Eco series use film capacitors which do not allow derating for single phase operation. If you need advanced pump features with single phase input over 3hp we can apply eco firmware to the P2 series drives and run those on single phase. This must be done prior to shipping and will need to be noted on your order.
Features of this series:
- Available from 1 to 400 hp, from 200 to 600 volt in single or 3 phase input
- Eco vector motor control
- BACnet is built-in as standard
- Internal EMC filter
- Optiflow Multiple Pump Control
- Flexible pump station control with no PLC or pump control units (standard feature on this series)
- Low harmonic design - EN 61000-3-12 compliant, low noise operation
Marshall Wolf Automation is your authorized Invertek distributor!
Features Include:
- Supply Voltage: 380-480 V
- Output Current: 46 A
- Input Phases: 3
- Supply Current Continuous: 41.4 A
- Supply Fuse or MCB (Type B): 50 A
- Motor Output Rating: 22 kW (30 HP)
- Output Voltage: 0 – Supply Voltage
- Output Current: 46 A
- Size: 4
- Height: 360 mm (14.17 in)
- Width: 240 mm (9.45 in)
- Depth: 271 mm (10.67 in)
Control Method:
- Eco Sensorless Vector
- Open Loop Permanent Magnet Vector
- Open Loop BLDC Vector
- Open Loop Synchronous Reluctance Vector
Technical Information:
- Invertek ODV-3-440460-3F1E-MN Datasheet
- Invertek Eco Optidrive Pump Control Brochure
- Invertek Eco Optidrive AC Variable Speed Drive User Guide
- Invertek Eco Optidrive AC Variable Speed Drive Advanced User Guide
- Invertek VFDs for Fan & Pump Applications Technical Specification
- Invertek Marine Equipment Control Catalog
- Invertek Combustion Air Fan Control Flyer
- Invertek Combustion Air Fan Control Brochure
- Invertek Reducing Total Harmonic Distortion with VFDs Brochure
- Invertek OptiTools Studio User Guide
- Invertek Stock Drives Catalog
Options and Communication Cards:
- Invertek Eco Optidrive BACnet User Guide
- Invertek Eco Optidrive HVAC Cascade Expansion Module User Guide
- Invertek Eco Optidrive DeviceNet Interface User Guide
- Invertek Eco Optidrive EtherNet IP Interface User Guide
- Invertek Input Line Chokes for Optidrives Installation Guide / IP20 & IP66
- Invertek Optidrive P2/HVAC Extended I/O Module User Guide
- Invertek Optidrive External EMC Filters User Guide
- Invertek Optiport 2 Remote Keypad Option Module User Guide
- Invertek Optidrive Profibus DP Interface User Guide
- Invertek Optistick User Guide
- Invertek Optidrive USB-485 Converter User Guide
- Invertek IP66 Sun Shade Installation Guide
- Invertek Optidrive RJ45 Port Expansion Module User Guide
- Invertek Optidrive PROFINET IO Interface User Guide
Application Notes:
- Invertek Using the VFD Bypass Operation for the Optidrive Eco Application Note
- Invertek Eco Motor Current Profile Monitoring Function Application Note
- Invertek Setting up the Multi-Pump Cascade with the Optidrive Eco Application Note
- Invertek Using the Optiflow With the Optidrive Eco Application Note
- Invertek Eco Modbus RTU Control & Register Map Application Note
- Invertek Eco Closed Loop PID control for the Optidrive Eco Application Note
- Invertek Eco Constant or Variable Torque Operation Application Note
- Invertek Eco Using the Standby Function Application Note
- Invertek Eco Using The Display Scaling Function Application Note
- Invertek Eco Using Additional Relay Output Modules Application Note
- Invertek Eco Programming the Drive Output Relays Application Note
- Invertek Eco Selecting the Start - Restart Mode Application Note
- Invertek Eco Using The Skip Frequency Function Application Note
- Invertek Eco Configuring Voltage and Current Signal Inputs Application Note
- Invertek Eco Choosing Hz or RPM Display Application Note
- Invertek Eco Locking Parameters to Prevent Changes Application Note
- Invertek Eco Selecting the Required Stopping Mode Application Note
- Invertek Eco Setting Up Acceleration and Deceleration Ramp Times Application Note
- Invertek Eco Setting the Motor Data Application Note
- Invertek Eco Using RCD's with Variable Frequency Drives Application Note
