ODP-2-54050-3HF42-MN

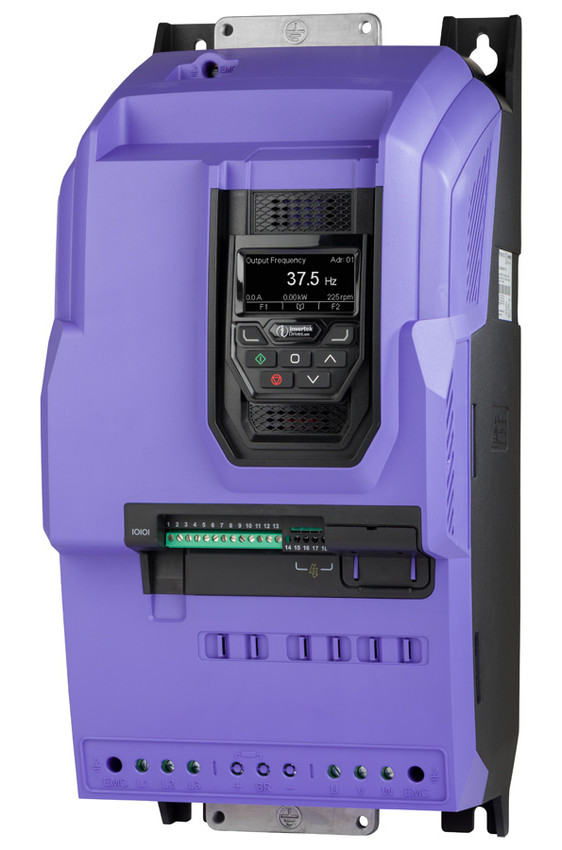

Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.

All P2 series 3 phase input rated drives can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.

If advanced pump features are required, the P2 series firmware can be changed to 'eco' firmware - this must be done prior to shipping, please put a note on your order that this is needed.

Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.

This series is available from 1 to 400 horsepower and from 200 to 600V, single or 3 phase input.

Additional features:

• 150% overload for 60 seconds
• 200% overload for 4 seconds
• Simple PLC functionality
• Built-in EMC filter
• Available in IP20, IP66 (with or without disconnect) or IP55
• Low ambient operation (-10°C)
• Modbus RTU and CANopen are standard
• Dedicated hoist mode
• Multiple control modes

This series is ideal for cranes, hoists, lifts, extruders, conveyers, pumps and mixers.

Series Features Include:

• Simple PLC functionality
• Built-in EMC filter
• Low ambient operation (-10°C)
• Dedicated hoist mode
• Integral brake resistor
• Safe torque off

Input Ratings:

• Input Supply Voltage: 200–240V ± 10%, 380–480V ± 10%, 500–600V ± 10%
• Supply Frequency: 48-62 H
• Displacement Power Factor: > 0.98
• Phase Imbalance: 3% Maximum allowed
• Power Cycles: 120 per hour maximum, evenly spaced

Output Ratings:

• Overload Capacity: 150% for 60 Seconds
• Output Frequency: 0 – 500Hz, 0.1Hz resolution

Output Power Ratings:

• 230V 1Ph. Input: 0.75–2.2kW (1–3HP)
• 230V 3Ph. Input: 0.75–75kW (1–100HP)
• 400V 3Ph. Input: 0.75–250kW
• 460V 3Ph. Input: 1–350HP
• 575V 3Ph. Input: 0.75–110kW (1–150HP)

Programming:

• Keypad: Built-in keypad as standard, optional remote mountable keypad
• Display: Built-in multi language text display (IP55 & IP66), 7 Segment LED (IP20)

Control Methods:

• V/F Voltage Vector
• Energy Optimized V/F
• 3GV Sensorless Vector Speed Control
• 3GV Sensorless Vector Torque Control
• Closed Loop (Encoder) Speed Control
• Closed Loop (Encoder) Torque Control
• PM Vector Control
• BLDC Control
• Synchronous Reluctance

Technical Information:

• Invertek Optidrive P2 High Performance Drive Brochure
• Invertek Stock Drives Catalog
• Invertek Optidrive P2 High Performance Drive User Guide
• Invertek Marine Equipment Control Catalog

Options and Communication Cards:

• Invertek Optiport 2 Remote Keypad Option Module User Guide
• Invertek Optidrive OLED Remote Keypad Option Module User Guide
• Invertek OPTISTICK User Guide
• Invertek RJ45 Port Expansion Module User Guide
• Invertek USB-485 Converter User Guide
• Invertek External EMC Filters User Guide
• Invertek Optidrive HVAC Cascade Expansion Module User Guide
• Invertek DeviceNet Interface User Guide
• Invertek Profibus DP Interface User Guide
• Invertek EtherNet IP Interface User Guide
• Invertek EtherCAT Interface User Guide
• Invertek PROFINET IO Interface User Guide
• Invertek Optidrive P2 / HVAC Extended I/O Module User Guide
• Invertek Optidrive P2 Encoder Interface Modules User Guide
• Invertek Modbus TCP Interface User Guide
• Invertek Input Line Chokes for Optidrives Installation Guide / IP20 & IP66
• Invertek Output Filters (Chokes) for Optidrives Installation Guide / IP20 & IP66
• Invertek Optidrive P2 Isolator Option Installation Guide
• Invertek Input Optidrive P2 Encoder Interface Modules User Guide
• Invertek Optidrive HVAC BACnet User Guide
• Invertek IP66 Sun Shade Installation Guide
