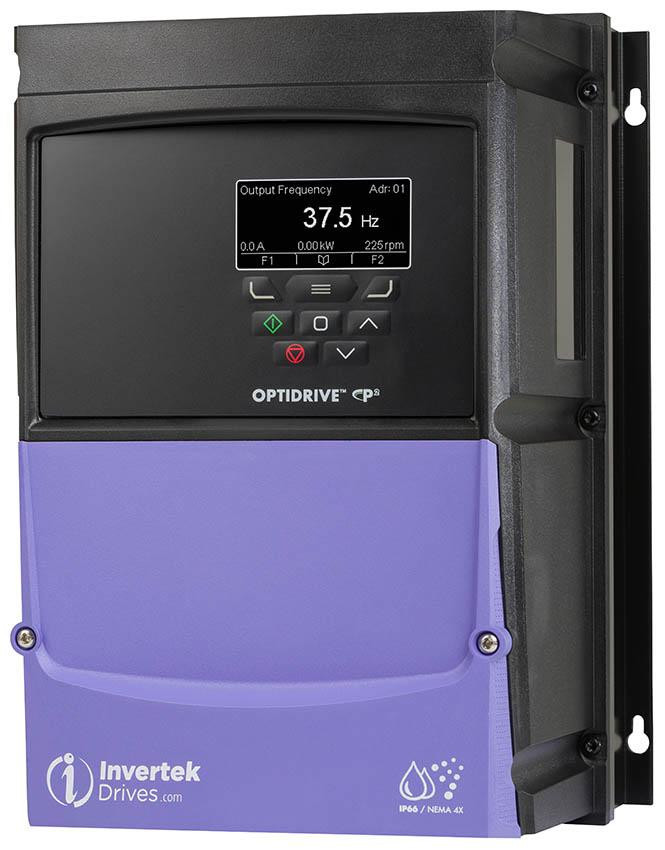

ODP-2-32050-1HF4A-MN
Alt: Optidrive P2 Series
$1,344.00
VFD, 5hp, 4kW, 15.3 Amp, 200-240V, Single Phase Input/3 Phase Output, TFT Keypad, No EMC Filter, Internal Brake Transistor, Modbus RTU/CANopen, NEMA 4X, IP66 Outdoor Non-Switched, OptiDrive™ P2, Performance, Frame 3: 12.2 x 8.3 x 9.3", 310
- Weight:
- 22.82 LBS
- Minimum Purchase:
- 1 unit
Description
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
All P2 series 3 phase input rated drives can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.
If advanced pump features are required, the P2 series firmware can be changed to 'eco' firmware - this must be done prior to shipping, please put a note on your order that this is needed.
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
This series is available from 1 to 400 horsepower and from 200 to 600V, single or 3 phase input.
Additional features:
- 150% overload for 60 seconds
- 200% overload for 4 seconds
- Simple PLC functionality
- Built-in EMC filter
- Available in IP20, IP66 (with or without disconnect) or IP55
- Low ambient operation (-10°C)
- Modbus RTU and CANopen are standard
- Dedicated hoist mode
- Multiple control modes
This series is ideal for cranes, hoists, lifts, extruders, conveyers, pumps and mixers.
Features Include:
- Supply Voltage Input: 200-240 V
- Input Phases: 1
- Motor Output Rating: 4kW (5HP)
- DC Power Supply: 33.2A
- Supply fuse or MCB (Type B): 40A
- Output Voltage: 0 – Supply Voltage
- Output Current: 15.3 A
- EMC Filter: Internal EMC filter
- Brake Transistor: Internal
- Enclosure: IP66 Switched Outdoor
- Display: TFT Display
- PCB Coating: Standard
- Fixings: 4 x M4
- Frame Size: 3
- Height: 310mm (12.2in)
- Width: 211mm (8.31in)
- Depth: 235mm (9.25in)
Technical Information:
- Invertek High Power VFDs for Single Phase Supplies Flyer
- Invertek Optidrive P2 High Performance Drive Brochure
- Invertek Stock Drives Catalog
- Invertek Optidrive P2 High Performance Drive User Guide
- Invertek Marine Equipment Control Catalog
Options and Communication Cards:
- Invertek Optiport 2 Remote Keypad Option Module User Guide
- Invertek Optidrive OLED Remote Keypad Option Module User Guide
- Invertek OPTISTICK User Guide
- Invertek RJ45 Port Expansion Module User Guide
- Invertek USB-485 Converter User Guide
- Invertek External EMC Filters User Guide
- Invertek Optidrive HVAC Cascade Expansion Module User Guide
- Invertek DeviceNet Interface User Guide
- Invertek Profibus DP Interface User Guide
- Invertek EtherNet IP Interface User Guide
- Invertek EtherCAT Interface User Guide
- Invertek PROFINET IO Interface User Guide
- Invertek Optidrive P2 / HVAC Extended I/O Module User Guide
- Invertek Optidrive P2 Encoder Interface Modules User Guide
- Invertek Modbus TCP Interface User Guide
- Invertek Input Line Chokes for Optidrives Installation Guide / IP20 & IP66
- Invertek Output Filters (Chokes) for Optidrives Installation Guide / IP20 & IP66
- Invertek Optidrive P2 Isolator Option Installation Guide
- Invertek Input Optidrive P2 Encoder Interface Modules User Guide
- Invertek Optidrive HVAC BACnet User Guide
- Invertek IP66 Sun Shade Installation Guide
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Invertek

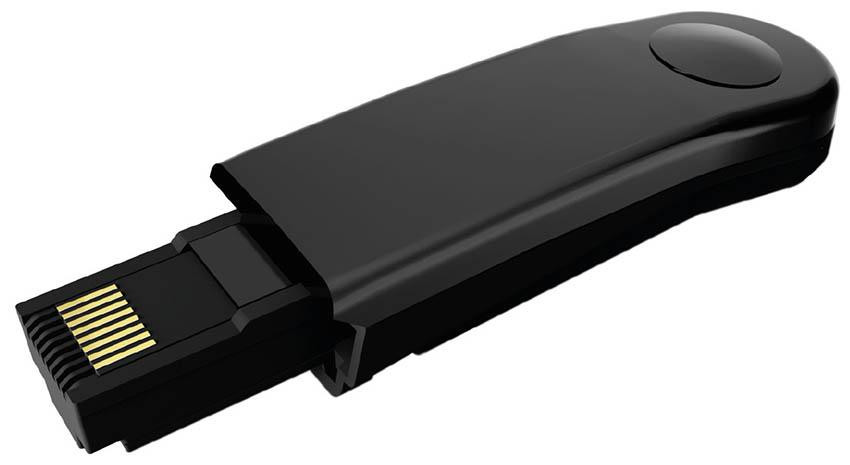

OPT-3-STICK-IN
