The Optidrive E3 from Invertek is a general purpose sensorless vector drive that is great for most motor types.

E3 series, 3 phase rated drives (with the exception of Size 4 IP66/NEMA 4X models) can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.

Invertek offers single phase input drives up to 10 hp, these drives are not derated.

• This is the most popular, general purpose drive from Invertek
• Available from 0.5 to 50hp
• Single and 3 phase input, 110 to 480V models
  • Single phase input models available up to 10hp!
• Choose from IP20 or IP66/NEMA 4X models
• Switch between Industrial or Pump & Fan modes
• Simple set up – just 14 basic parameters and functions
• Includes models for single phase motors
• Can be used with all motor types; induction, AC permanent magnet, brushless DC, line start PM, synchronous reluctance
• Internal Category C1 EMC filter
• 2 year warranty

IP20 (part #'s ending in 2):

• Available up to 50hp, no disconnect switch
• Indoor rated
• 3 phase models can be derated by 50% for use in single phase power applications

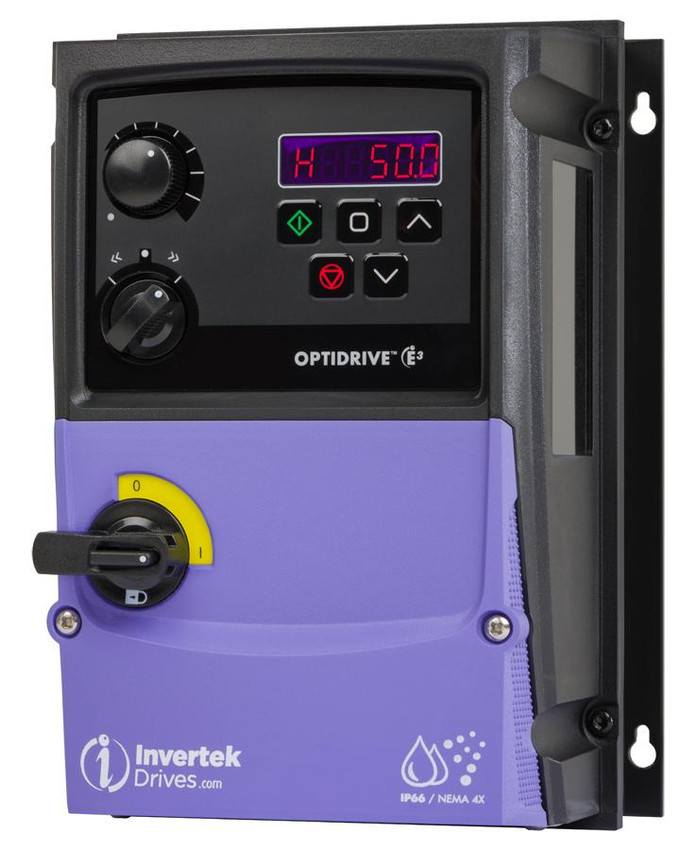

IP66/NEMA 4X (part #'s ending in A or B):

• Ending in B is Outdoor, with disconnect switch
• Ending in A is Outdoor, no disconnect switch
• Outdoor rated, dust-tight and washdown ready!
• Please note: For IP66/NEMA 4X three phase input models, chassis size 4 is not capable of being derated for use in applications supplying single phase power to these units.
  • Size 4 chassis use film capacitors which prohibit single phase operation.

Single Phase Input/Output:

• Available from 0.5 to 1,5hp
• For use on permanent split capacitor (PSC) or shaded pole induction motors
• These drives end in -01
• Higher horsepower 3 phase models can be derated for use in single phase power applications.
• Switch between industrial mode, pump mode and fan mode
• 14 parameter basic setup, default settings suitable for most applications
• Internal Category C1 EMC filter

Features Include:

• Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer
• Output Current: 7 A
• Digital Inputs: 8 – 30 Volt DC, internal or external supply | Response time < 4ms
• Output Frequency: 0 – 500Hz, 0.1Hz resolution
• Acceleration Time: 0.01 - 600 seconds
• Keypad: Built-in keypad as standard, optional remote mountable keypad
• Display: 7 Segment LED
• PC: OptiTools Studio
• Small mechanical envelope
• Rugged industrial operation
• Fast setup, and simple operation with 14 basic parameters
• Unique motor control strategy optimized for single phase motors
• Motor current and rpm indication
• Built in PI control, EMC filter (C1) & brake chopper
• Application macros for industrial, fan and pump operation
• Bluetooth connectivity

Control Method:

• Sensorless Vector Speed Control
• PM Vector Control
• BLDC Control
• Synchronous Reluctance

Technical Information:

• Invertek High Power VFDs for Single Phase Supplies Flyer
• Invertek Optidrive E3 General Purpose Drive Brochure
• Invertek Optidrive E3 Indoor User Guide
• Invertek Optidrive E3 IP66 Outdoor User Guide
• Invertek Optidrive E3 Quick Start Guide
• Invertek Optidrive E3 Advanced Technical Manual
• Invertek Stock Drives Catalog

Options and Communication Cards:

• Invertek Relay Output Module User Guide
• Invertek IP66 Sun Shade Installation Guide
• Invertek RJ45 Port Expansion Module User Guide

Application Notes:

• Invertek Optidrive E3 BLDC Motor Compressor Application Note
• Invertek Optidrive E3 Modbus Register Information Application Note
• Invertek PI Control Using Optidrive E3 Application Note
• Invertek Optidrive E3 Setting Up Preset Speeds Application Note
• Invertek Optidrive E3 Using the Brake Circuit Application Note
• Invertek Optidrive E3 Using Standby Mode Application Note
• Invertek Optidrive E3 Using the Display Scaling Function Application Note
• Invertek Optidrive E3 Using the 2ROUT Option Application Note
• Invertek Optidrive E3 Programming The User Relay Application Note
• Invertek Optidrive E3 Selecting the Start - Restart Mode Application Note
• Invertek Optidrive E3 Using the Skip Frequency Function Application Note
• Invertek Optidrive E3 Configuring Analog Inputs for Voltage and Current Application Note
• Invertek Optidrive E3 Displaying Motor Speed in RPM Application Note
• Invertek Optidrive E3 Locking Parameters to Prevent Changes Application Note
• Invertek Optidrive E3 Setting the Required Stopping Mode Application Note
• Invertek Optidrive E3 Setting Up Acceleration and Deceleration Ramp Times Application Note
• Invertek Optidrive E3 Setting the Motor Nameplate Details for Standard Motors Application Note
• Invertek Optidrive E3 Use of Three Phase Drives On Single Phase Power Supply Application Note
• Invertek Optidrive E3 Using the Maximum of Analogue Input Values Application Note
• Invertek Optidrive E3 Using RCD's with Variable Frequency Drives Application Note
