Pepperl+Fuchs
267075-100242

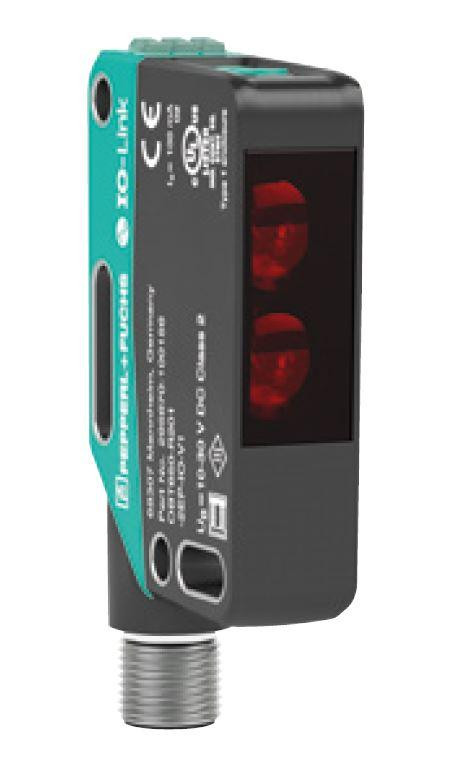

Photoelectric Laser Diffuse Mode Triangulation Sensor with Adjustable Background Suppression, Returns of This Item Must Be Approved by Manufacturer
$197.22
295670-100242
Alt: OBT600-R201-2EP-IO-V1-L,
$225.39
Photoelectric Sensor, BGS, 600mm, Laser, 10-30VDC, 4-in-1 Output, IO-Link, M12
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Medium design with versatile mounting options
- DuraBeam Laser Sensors - durable and employable like an LED
- Extended temperature range: -40°C - 60°C
- IO-link interface for service and process data
- Detection range: 40 - 600 mm
- Adjustment range: 90 - 600 mm
- Reference target: standard white, 100 mm x 100 mm
- Light source: laser diode
- Wave length: 680 nm
- Beam divergence: > 5 mrad, d63 < 2,8 mm in the range of 350 mm - 800 mm
- Diameter of the light spot: approx. 2.5 mm at a distance of 600 mm
- Operating voltage: 10 - 30 V DC
- Housing width: 15 mm
- Housing height: 61.7 mm
- Housing depth: 41.7 mm
- Degree of protection: IP67 / IP69 / IP69K
- Connection: 4-pin, M12 x 1 connector, 90° rotatable
Technical Information:
Learn More About Pepperl+Fuchs Here!
