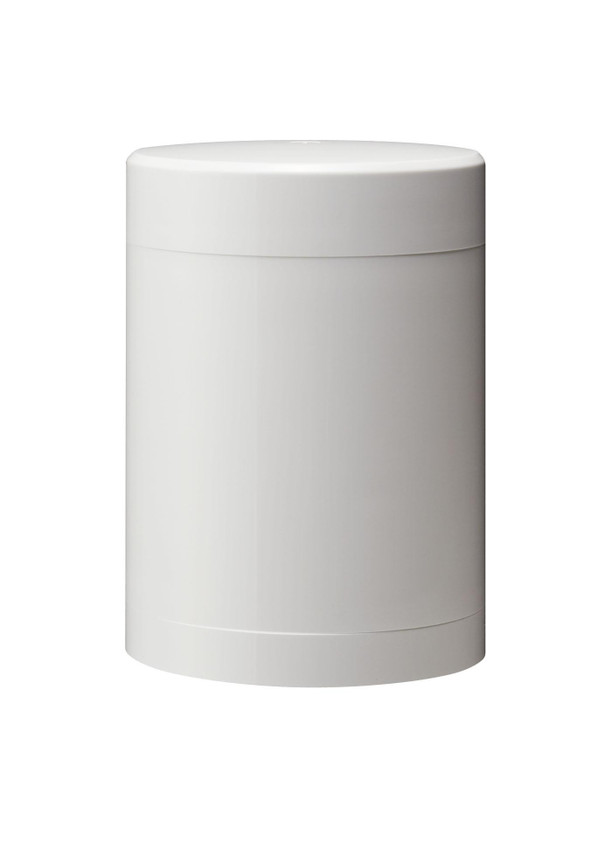

LR7-02KTNW

This is a modular light tower, you will need to buy the LED modules and optional buzzer unit separately.

LR7 Series Product Features Include:

• Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
• Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
• A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules
• A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating
• Rated voltage: DC24V
• Standard body color: Off-white. Silver and black bodies available as components only.

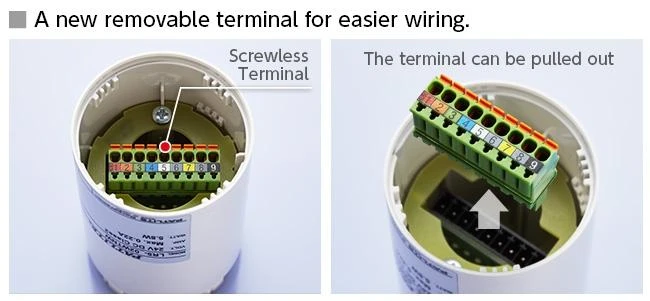

• Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT). Click here for more details
• Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)

Need More Information?

• Patlite LR Series Catalog
• Patlite LR Series Operation Manual
• Patlite LR Series Instruction Manual
• Patlite LR Series Specifications

Check out Patlite's handy assembly videos below!

How To Install the LR Series Folding Bracket
