$314.00
O300.GL-PV1T.72N
Alt: 11171748
$314.00

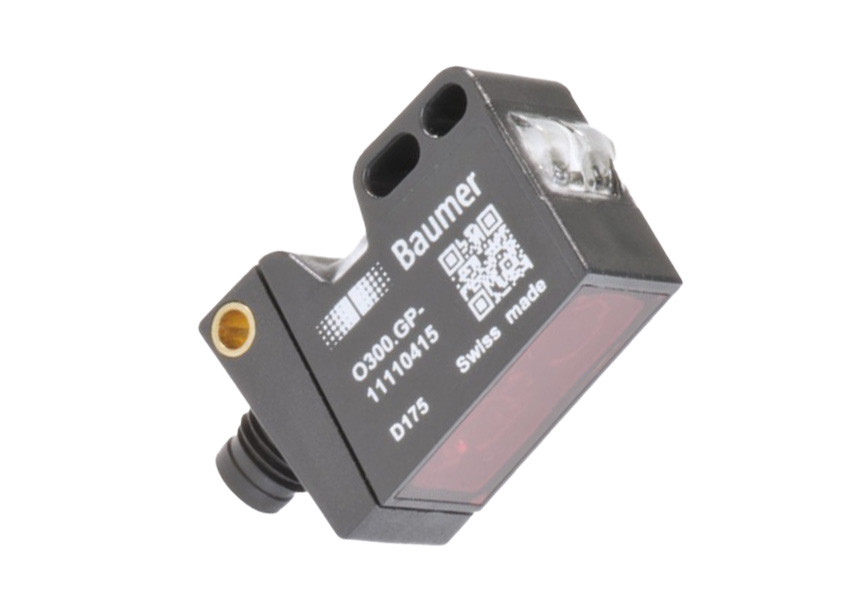

Diffuse Sensor with Background Suppression (BGS), Pulsed Red Laser Diode, 11-30VDC, 30-250mm Sensing Range, qTeach, Light/Dark Operate, M8 4-Pin Connector, IP67, 32.3 x 12.9 x 23mm (HWD)
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Type: Background suppression
- Light source: Pulsed red laser diode
- Sensing distance Tw: 30 - 250 mm
- Sensing range Tb: 15 - 250 mm
- Sensing distance adjustment: Teach
- Distance to focus: 80 mm
- Wave length: 656 nm
- Voltage supply range +Vs: 11 - 30 VDC
- Current consumption max. (no load): 30 mA
- Current consumption typ.: 25 mA
- Voltage drop Vd: < 2.5 VDC
- Output function: Light / dark operate
- Output circuit: PNP complementary
- Width / diameter: 12.9 mm
- Height / length: 32.3 mm
- Depth: 23 mm
- Housing material: Plastic (ASA, PMMA)
- Front (optics): PMMA
- Connection types: Connector M8 4 pin
