NS M4ZZ1SMK
Alt: NS Series
$606.90

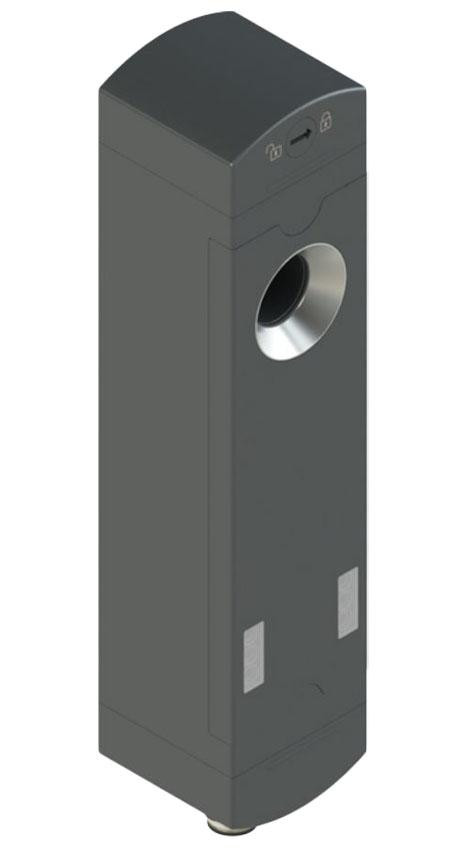

RFID Safety Switch with Electromagnet NS Series
- Weight:
- 3.51 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Specifications
Series
NS Series
Type of Safety Switch
RFID Safety Sensor
Warranty
1 Year
Alternate Part Number
NS Series
Weight
3.511
Features Include:
- Housing: Polymer housing
- Auxiliary release with variable orientation: Without release
- Output connection direction: Cable or connector at bottom
- Actuator: Without actuator
- Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653
- Working method: M working method, locked actuator with energised solenoid, Mode 3: first safety output active with inserted and locked actuator, second safety output active with inserted actuator
- Button configuration: No device
- Type of connection: M12 connector, 12-pin
- Inputs and outputs:
- 2 safety inputs IS1-IS2,
- 2 safety outputs OS1-OS2,
- 1 signalling output O3: actuator inserted,
- 1 signalling output O4: actuator locked,
- 2 solenoid activation inputs IE1-IE2,
- 1 programming / reset input I3
