$724.10
NS H4TE1SMK
Alt: NS Series
$711.92

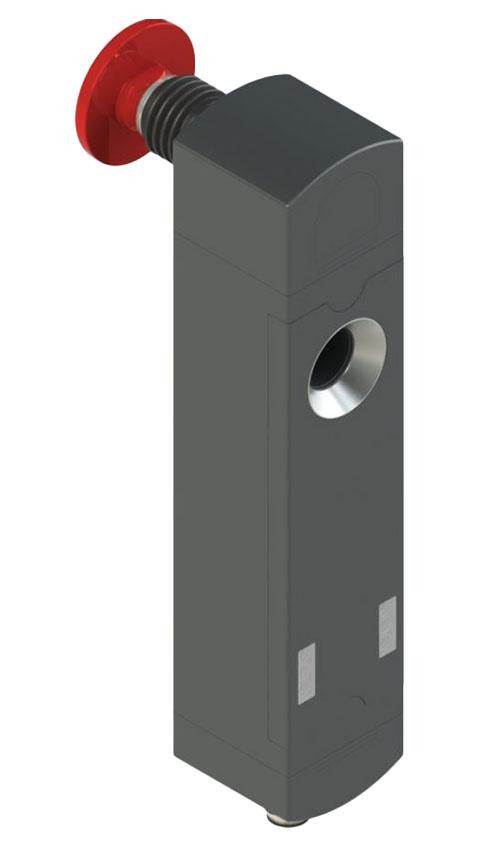

RFID Safety Switch with Electromagnet NS Series
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Features Include:
- Housing: Polymer housing
- Auxiliary release with variable orientation: Without front release and with rear emergency pushbutton
- Output connection direction: Cable or connector at bottom
- Actuator: Without actuator
- Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653
- Working method: H working method, locked actuator with energised solenoid, Mode 2: OS safety outputs active with closed protection
- Button configuration: No device
- Type of connection: M12 connector, 12-pin
- Inputs and outputs:
- 2 safety inputs IS1-IS2,
- 2 safety outputs OS1-OS2,
- 1 signaling output O3: actuator inserted,
- 1 signaling output O4: actuator locked,
- 2 solenoid activation inputs IE1-IE2,
- 1 programming / reset input I3
Technical Information:
Read more about Switches here!
