NS D4SE1SMK
Alt: NS Series
$803.89

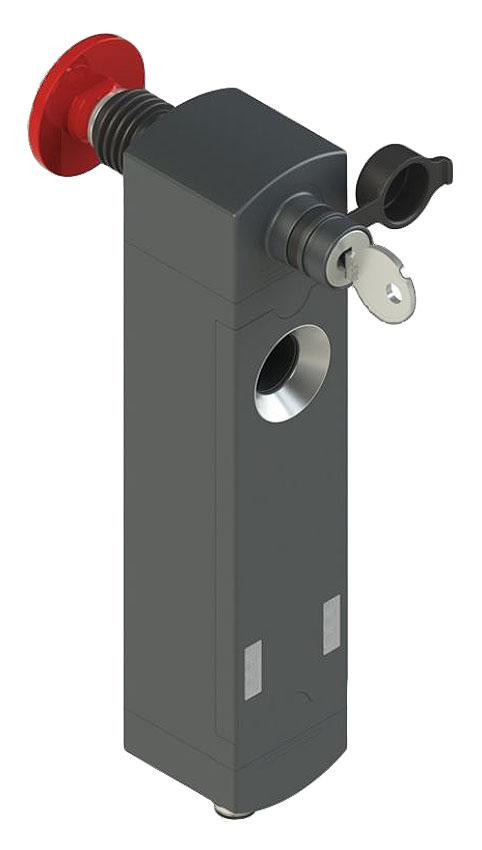

RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
- Weight:
- 1.60 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica presents the new NS series os safety switches with solenoid and RFID technology.
The NS series switches have a technopolymer body and are ideal for medium/light applications.
The main features of the new NS series:
• Contactless activation using RFID technology.
• Maximum safety with one device only: the NS series switches make it possible to obtain circuits with the highest safety level PLe and SIL3, installing only one device.
• Large centering hole: the switch is equipped with a large hole for centering the actuator's pin. This solution makes it easier to align the actuator and the hole on the head of the switch during the assembly phase. Ideal for off-axis doors.
• Steerable and not detachable head and devices: the top module of the switch, which incorporates the release devices, and the lower module, which includes the connection outputs, are steerable and non detachable. The modules can be rotated in 90° steps, thus obtaining different combinations with the same item.
• Protection degree IP67 and IP69K.
Features Include:
- Housing: Polymer housing
- Auxiliary release with variable orientation: Front key release and rear emergency pushbutton
- Output connection direction: Cable or connector at bottom
- Actuator: Without actuator
- Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653
- Working method: D working method, locked actuator with de-energized solenoid, Mode 1: OS safety outputs active with locked protection
- Button configuration: No device
- Type of connection: M12 connector, 12-pin
- Inputs and outputs:
- 2 safety inputs IS1-IS2,
- 2 safety outputs OS1-OS2,
- 1 signalling output O3: actuator inserted,
- 1 signalling output O4: actuator locked,
- 2 solenoid activation inputs IE1-IE2,
- 1 programming / reset input I3
Technical Information:
