Pizzato
NS D4CE1SMK-F41
Safety Switch, (RFID), Locking, Complete with Actuator with High Coding Level VN NS-F41, Technopolymer Housing, M12 12-Pole Connector, IP67, NS Series
$623.27
NS D4SE1SA2-F41
Alt: NS Series
$883.81

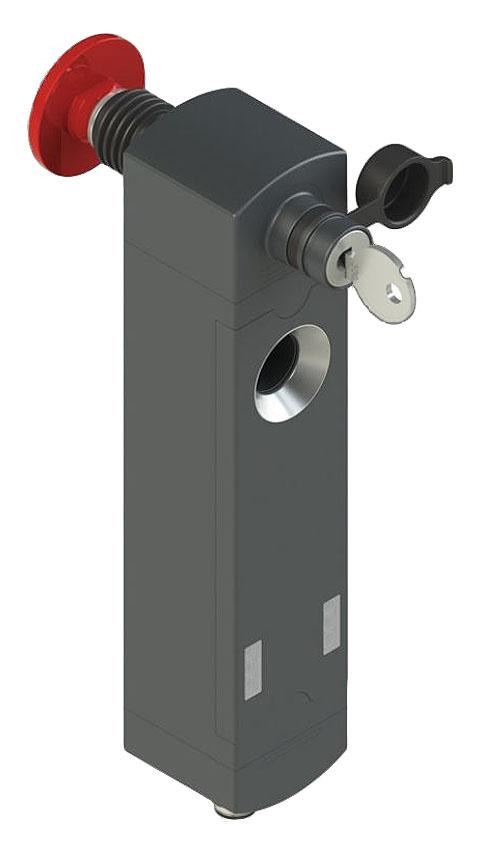

RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica presents the new NS series os safety switches with solenoid and RFID technology.
The NS series switches have a technopolymer body and are ideal for medium/light applications.
The main features of the new NS series:
• Contactless activation using RFID technology.
• Maximum safety with one device only: the NS series switches make it possible to obtain circuits with the highest safety level PLe and SIL3, installing only one device.
• Large centering hole: the switch is equipped with a large hole for centering the actuator's pin. This solution makes it easier to align the actuator and the hole on the head of the switch during the assembly phase. Ideal for off-axis doors.
• Steerable and not detachable head and devices: the top module of the switch, which incorporates the release devices, and the lower module, which includes the connection outputs, are steerable and non detachable. The modules can be rotated in 90° steps, thus obtaining different combinations with the same item.
• Protection degree IP67 and IP69K.
Series Features Include:
- Actuation without contact, using RFID technology
- Digitally coded actuator
- SIL 3 and PL e also with series connection of up to 32 devices
- Max. actuator holding force: 2100 N
- SIL 3 and PL e with a single device
- Protection degrees IP67 and IP69K
- *Image is representative only
Technical Information:
Read more about Switches here!
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$79.72
$669.17
$870.86
Pizzato
NS E4ZZ1SMK-F41
Safety Locking Switch with RFID Technology, Technopolymer Housing, M12 Connector (12-Pole), without Actuator, IP67, NS Series
$668.98
$589.25
Pizzato
NS D4CE1SPK
RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
$691.60
$711.92
Pizzato
NS D4AZ1SA2
RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series
$589.44
