NS D4CE1SPK

NS D4CE1SPK

Alt: NS Series

$691.60

RFID Safety Switch with Electromagnet, Actuation without Contact Using RFID, Digitally Coded Actuator, SIL 3 and PL e with a Single Device, NS Series

Weight:
1.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
The NS series makes it possible to obtain circuits with the highest safety level PLe and SIL3, installing only one device!
Description

Pizzato Elettrica presents the new NS series os safety switches with solenoid and RFID technology.


The NS series switches have a technopolymer body and are ideal for medium/light applications.

 The main features of the new NS series:

• Contactless activation using RFID technology.

• Maximum safety with one device only: the NS series switches make it possible to obtain circuits with the highest safety level PLe and SIL3, installing only one device.

• Large centering hole: the switch is equipped with a large hole for centering the actuator's pin. This solution makes it easier to align the actuator and the hole on the head of the switch during the assembly phase. Ideal for off-axis doors.

• Steerable and not detachable head and devices: the top module of the switch, which incorporates the release devices, and the lower module, which includes the connection outputs, are steerable and non detachable. The modules can be rotated in 90° steps, thus obtaining different combinations with the same item.

• Protection degree IP67 and IP69K.

Series Features Include:

  • Actuation without contact, using RFID technology
  • Digitally coded actuator
  • SIL 3 and PL e also with series connection of up to 32 devices
  • Max. actuator holding force: 2100 N
  • SIL 3 and PL e with a single device
  • Protection degrees IP67 and IP69K

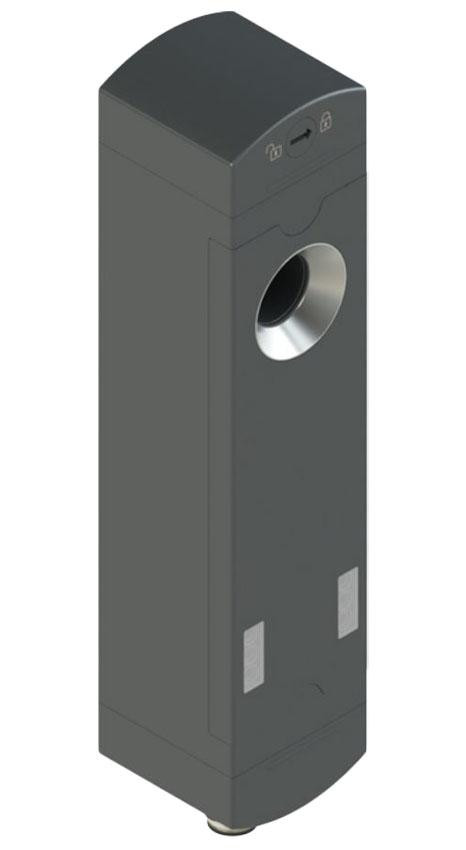

  • *Image is representative only
