306533-0022
Alt: NRB15-30GS50-E2-IO
$156.97

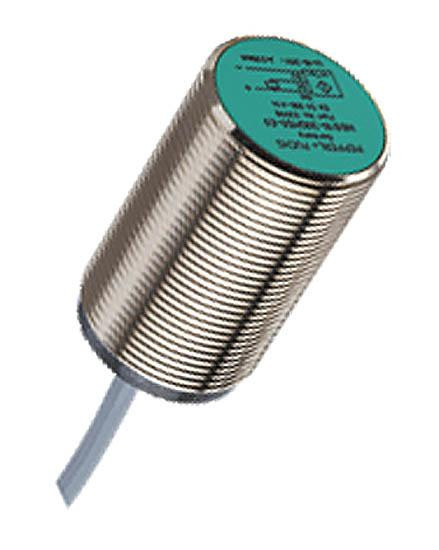

Inductive Sensor, Flush, 15mm Range, 30mm SS Housing, PNP, IO-Link, RF1, Cable, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Specifications
Alternate Part Number
NRB15-30GS50-E2-IO
Connection
w/Cable
Material
Stainless Steel
Normally Open/Closed
Normally Open/Closed (NO/NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
NR Series
Shielded/Unshielded
Shielded Cable
Size
30mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
18 Months
Weight
0.5
Features Include:
- 15 mm flush
- Reduction factor = 1
- Magnetic field resistant
- IO-link interface for service and process data
- Switch point mode or window mode can be set
- Switching function, stability alarm and pulse extension can be set
- Switching function: Normally open/closed (NO/NC) programmable
- Output type: 3-wire
- Rated operating distance: 15 mm (factory setting)
- Operating voltage: 10 - 30 V DC
- Operating current: 0 - 200 mA
- Connection type: Cable PVC, 2 m
- Housing material: Stainless steel 1.4305 / AISI 303
