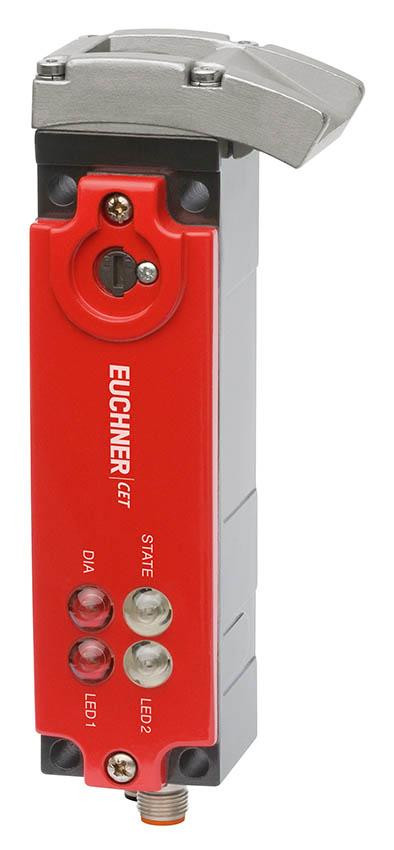

111684 - Euchner

The Euchner CET series is used to guard lock for personnel protection in accordance with EN 14119.

This series offers very high guard locking of up to 6500N, 2 safety outputs, a head that can be rotated in 90° steps and it is IP67 rated. The metal housing and safety category 4 and PL e according to EN ISO 13849-1 make this the right safety switch for you!

CET-AP - Single device

• Safety switch with guard locking and safe guard lock monitoring
• Integrated CES-AP electronics
• No special evaluation unit required
• Safety category 4 and PL e in accordance with EN ISO 13849-1 with any mounting position, head down/up/horizontal
• Two safe semiconductor outputs and signal output OUT
• Safety outputs with clocking
• Input (optional) for connection of feedback loop and start button

CET-AR - For connection of up to 20 AR devices

• Safety switch with guard locking and safe guard lock monitoring
• Integrated CES-AR electronics
• No special evaluation unit required
• Series connection of up to 20 devices (CES-AR, CET-AR, MGB-AR, ...) in an AR chain possible
• Safety category 4 and PL e according to EN ISO 13849-1 with any mounting position, head down/top/level
• Two safe semiconductor outputs and signal output OUT
• Safety outputs with clocking
• Input (optional) for connection of feedback loop and start button

CET-AS - For direct connection to AS-Interface

• Integrated AS-i connection
• Robust metal housing
• Suitable for heavy doors
• High tamper resistance
• High protection class IP67
• Detailed diagnosis with four LEDs (ASi/STATE, 2 colors each)
