Patlite
NE-ILTB-M

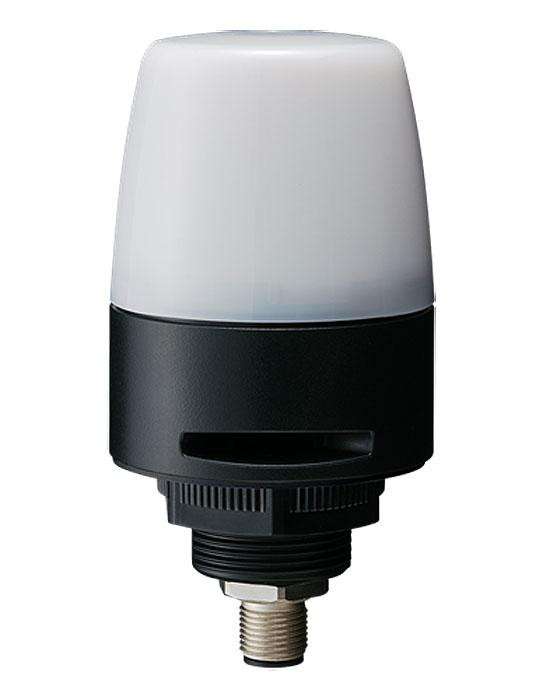

Beacon, Ø56mm, IO-Link, Continuous/Flashing, Buzzer, Touch Sensor, 7 Colors, 24VDC, M12/5 Connector, IP65
$120.00
NE-ILTN-M
Alt: NE-IL Series
$140.00
Beacon, Ø56mm, IO-Link, Continuous/Flashing + Touch Sensor, 7-in-1 Multicolor LED, M12 Connector, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Our Patlite NE-IL series is an IO-link indicator that installs into IO-Link masters plus features a touch sensor and rugged housing!
This 56mm, 24VDC beacon is available in:
- Regular: NE-ILNN-M
- With buzzer: NE-ILNB-M
- With touch sensor: NE-ILTN-M
- With buzzer and touch sensor: NE-ILTB-M
- With buzzer, touch sensor and digital/analog input: NE-ILXB-M
Additional features include:
- Capacitive touch sensor enables real-time status confirmations
- Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master
- Features an M12 connection for quick and easy installations
- Status indicator devices connected to an IO-Link master can be controlled collectively
- Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime
- Up to 7 colors can be emitted to indicate different equipment conditions
- High protection rating for operation in harsh environments
- Frosted lens displays evenly distributed light for unambiguous indication
NE-IL Features
- 56mm, 24VDC
- Capacitive touch sensor enables real-time status confirmations
- Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master
- Features an M12 connection for quick and easy installations
- Status indicator devices connected to an IO-Link master can be controlled collectively
- Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime
- Up to 7 colors can be emitted to indicate different equipment conditions
- High protection rating for operation in harsh environments
- Frosted lens displays evenly distributed light for unambiguous indication
- Available in:
-
- Regular: NE-ILNN-M
- With buzzer: NE-ILNB-M
- With touch sensor: NE-ILTN-M
- With buzzer and touch sensor: NE-ILTB-M
- With buzzer, touch sensor and digital/analog input: NE-ILXB-M
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Patlite
NE-M1ACNB-M
Beacon, Ø56mm, 12-24VDC, Continuous/Flashing/88dB Alarm, 7-in-1 Multicolor LED, M12 Connector, IP65, NEMA 4X, 13
$108.00
Patlite
NE-ILNN-M

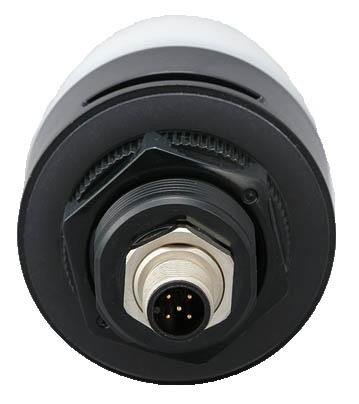

Beacon, Ø56mm, IO-Link, Continuous/Flashing, 7-in-1 Multicolor LED, M12 Connector, IP65
$102.00
Patlite
NE-M1ANN-M
Beacon, Ø56mm, 12-24VDC, Continuous/Flashing/No Alarm, 7-in-1 Multicolor LED, Black Base, Cabtire Cable, NEMA 4X, 13
$50.31
Patlite
NE-M1ANB-M

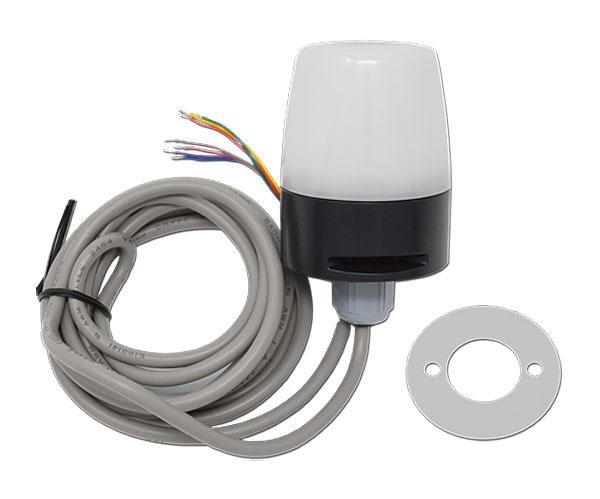

Beacon, Ø56mm, 12-24VDC, Continuous/Flashing/88dB Alarm, 7-in-1 Multicolor LED, Black Base, Cabtire Cable, NEMA 4X, 13, NCNR
