MSW 63 P-3
Alt: MSW 63 P3, 11898884
$40.70
Disconnect Switch, 63A, Panel Mounting, 3-Pole, Mechanism Only (No Handle and No Shaft), MSW Series
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description

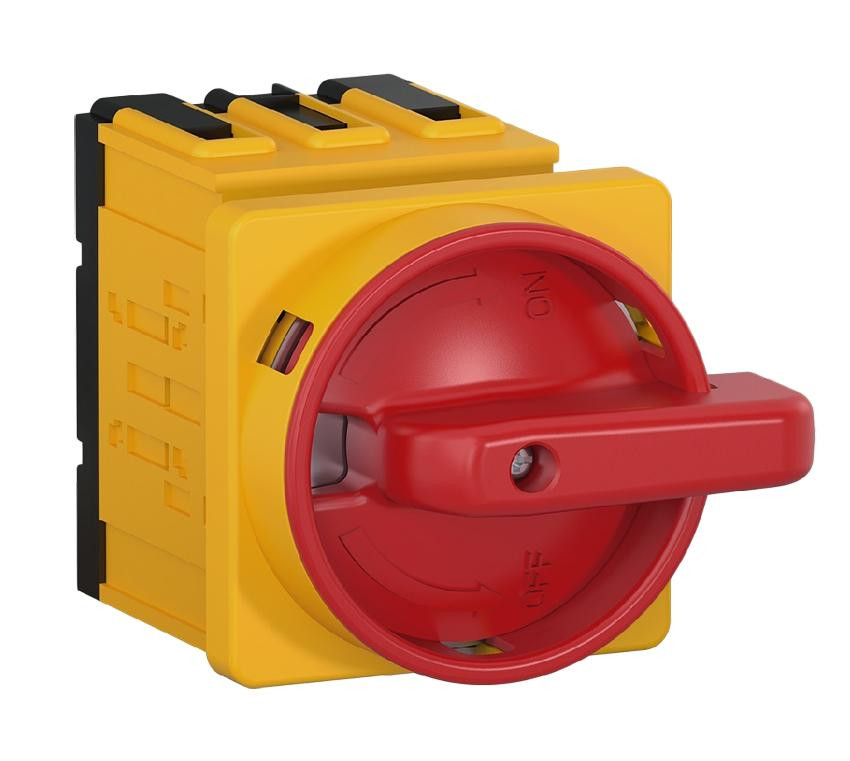

WEG MSW Series UL508 Disconnect Switches
The MSW series was developed according to IEC 60947-3 and UL508. They are used for manually isolating or interrupting electrical circuits under load conditions. They are often used as a means for secondary lock-out / tag-out scenarios.
Available in 25, 40, 63 or 80 amp.
Standard Features
- Suitable as Motor Disconnect
- Two mounting options available; door mount or base mounting (by screws or DIN rail)
- Two color options: Yellow cover with red handle or gray cover with black handle
- Protection ratings:
-
- IP65 protection rating for handles allowing up to three padlocks in “OFF” position
- IP20 protection rating for internal terminals
- Knock-outs for cable gland provides flexibility for cable entry/exit on the top, bottom, and rear of the box
- UL File No. E172121
- Accessories include additional pole, auxiliary contacts and terminal cover
- Also available in enclosed versions; MSWB series
Specifications
Alternate Part Number
MSW 63 P3, 11898884
Amp Rating
63 Amp
Handle
Rotary Switch
Housing/Enclosure
IP20
Material
Plastic
Poles
3 Pole
All - Specific Ratings
IP20 Rated
Series
MSW Series
Options
No Special Options
Warranty
18 Months
Quantity
1
Weight
1
Series Features Include:
- Surface-mounted switch-disconnectors (base)
- Two color options: yellow cover with red handle or gray cover with black handle
- Locking in the OFF position with up to three padlocks
- Knock-outs for cable gland: flexibility allowing cable entry/exit at the top, bottom and rear of the box
- Robust and heat resistant enclosures
- An additional pole can be installed (accessory item)
- An auxiliary contact can be installed (accessory item)
