The MSW series was developed according to IEC 60947-3 and UL508. They are used for manually isolating or interrupting electrical circuits under load conditions. They are often used as a means for secondary lock-out / tag-out scenarios.
Available in 25, 40, 63 or 80 amp.
Standard Features
Suitable as Motor Disconnect
Two mounting options available; door mount or base mounting (by screws or DIN rail)
Two color options: Yellow cover with red handle or gray cover with black handle
Protection ratings:
IP65 protection rating for handles allowing up to three padlocks in “OFF” position
IP20 protection rating for internal terminals
Knock-outs for cable gland provides flexibility for cable entry/exit on the top, bottom, and rear of the box
UL File No. E172121
Accessories include additional pole, auxiliary contacts and terminal cover
Also available in enclosed versions; MSWB series
Series Features Include:

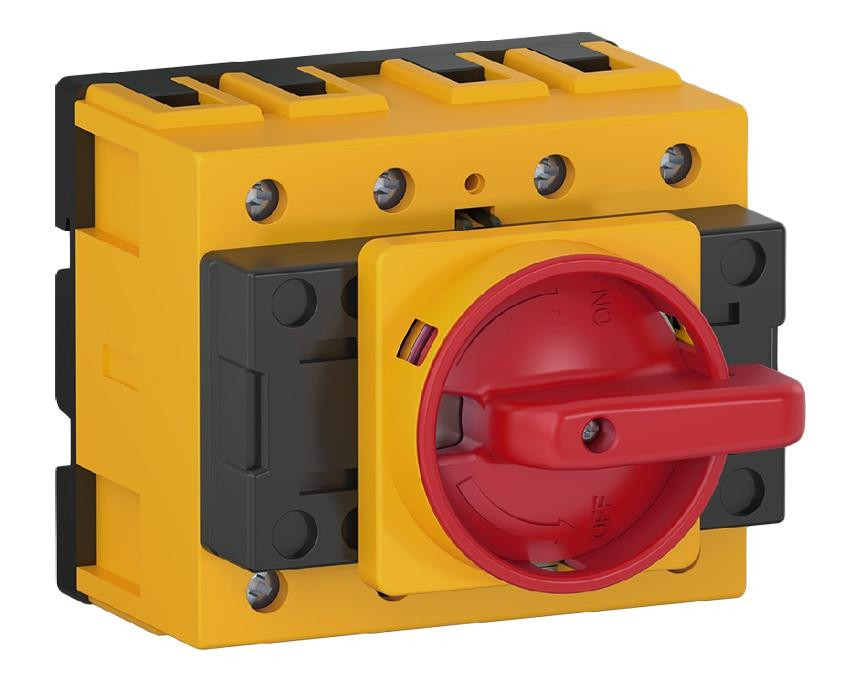

Surface-mounted switch-disconnectors (base)
Two color options: yellow cover with red handle or gray cover with black handle
Locking in the OFF position with up to three padlocks
Knock-outs for cable gland: flexibility allowing cable entry/exit at the top, bottom and rear of the box
Robust and heat resistant enclosures
An additional pole can be installed (accessory item)
An auxiliary contact can be installed (accessory item)
Terminal Shroud, 100A, Panel Mounting, 3-Pole, MSW Series, Note: To cover the terminals on the 100A Model, it is necessary to use 2 pieces of item MSW TS 100-P-3.
