MS 35
Alt: Being Replaced by MK V11D35
$13.53

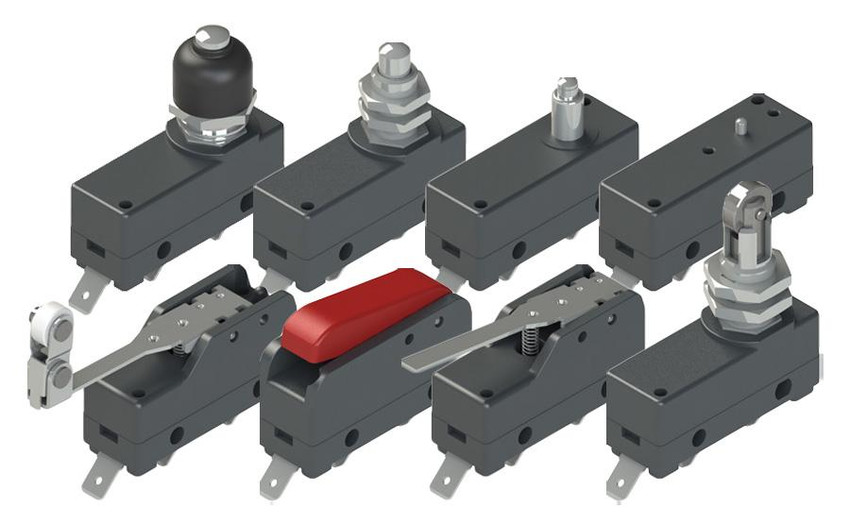

Microswitch with Long Lever
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Series Features Include:
- Glass-reinforced polymer, self-extinguishing, shock-proof thermoplastic resin housing
- Protection degree IP20 or IP40
- 4 terminal types available (MS: solder terminals, MV: screw terminals, MF: faston terminals, MM: mantle terminals)
- 32 actuators available
- Thermal current (lth): 16 A
- Rated insulation voltage (Ui): 250 VAC 300 VDC
- Operation voltage (Ue): 250 VAC (50 Hz)
- Operation current (le): 5 A
